Tplink TL-RP108GE Kenya



Tplink TL-RP108GE Kenya

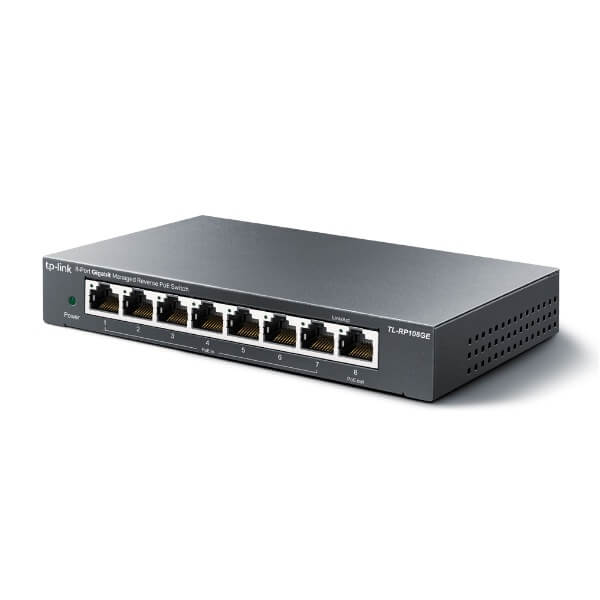

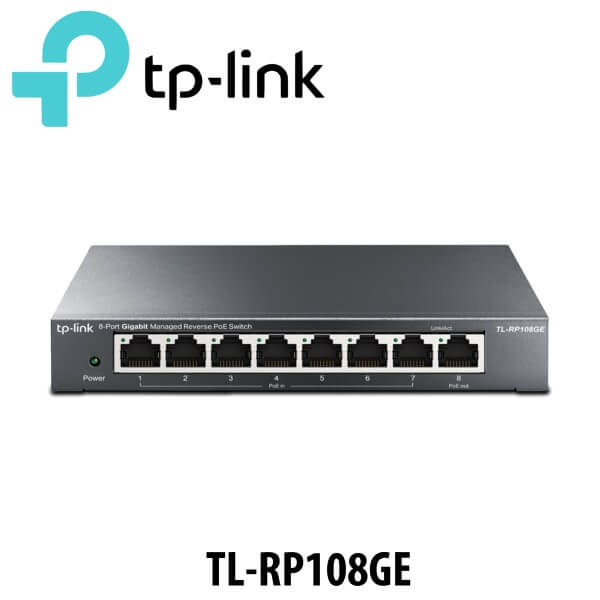

The Tplink TL-RP108GE Kenya Passive PoE switch has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors.

Description

Tplink TL-RP108GE PoE Network Switch Kenya

The Tplink TL-RP108GE Kenya Passive PoE switch has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, this Tplink TL-RP108GE Kenya switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, Tplink TL-RP108GE Kenya saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.

Features

  • 7 PoE input and 1 PoE output 10/100/1000 Mbps RJ45 Ports
  • 1 DC output port that supports both 5V and 12 V voltage switching
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption

Easy to Use

Connecting devices to Tplink TL-RP108GE Kenya is simple. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of network devices and intelligently adjusts settings for compatibility and optimal performance.

Abundant Software Features

TL-RP108GE excels not only in simple plug-and-play networks, but also in more demanding environments.

  • 1p and DSCP QoS ensure smooth traffic.
  • Network monitoring enables users to observe traffic behavior.
  • Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located.
  • Port/802.1p/DSCP QoS : Designate the priority of the traffic, for example, to ensure that voice and video applications remain clear and lag-free.
  • MTU VLAN, port-based VLAN and 802.1Q-based VLAN : Meet more network segmentation requirements and provide a more secure network.

Durable Metal casing

The interior components of Tplink TL-RP108GE Kenya are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-RP108GE delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Go Green with Your Ethernet

Tplink TL-RP108GE Kenya makes use of innovative energy-saving technologies. Power consumption automatically adjusts according to the link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Protect the planet and lower your energy bills

Specifications

HARDWARE FEATURES
Standards and Protocols CSMA/CD
Interface
  • 7 Passive PoE-in RJ45 Ports :
  • 10/100/1000Mbps Auto-Negotiation
  • Voltage : 24/48 V (mixture is not supported)
  • Power pin of Ethernet cable : 4/5+ 7/8-1 Passive PoE-out RJ45 Port :
  • 10/100/1000Mbps Auto-Negotiation
  • Voltage : depending on the input voltage of PoE-in ports

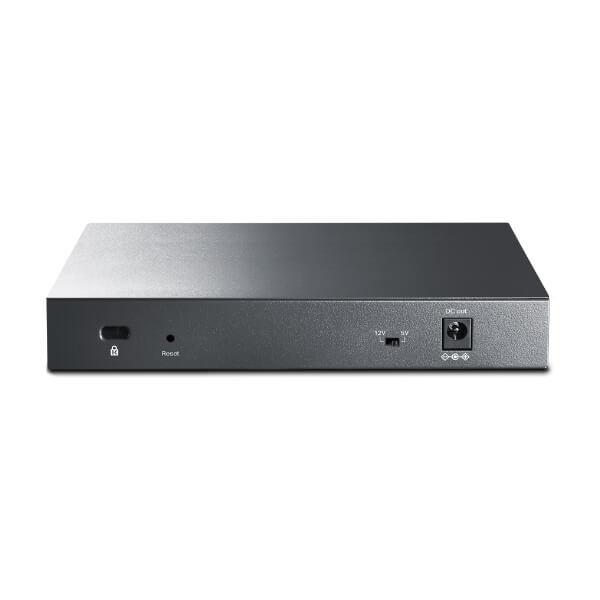

  • Power pin of Ethernet cable : 4/5+ 7/8-1 DC Output Port :
  • Voltage : 5/12 V
Network Media
  • 10Base-T :
  • UTP category 3, 4, 5 cable (maximum 100 m)
  • EIA/TIA-568 100 Ω STP (maximum 100 m)100Base-TX :
  • UTP category 5, 5e cable (maximum 100 m)
  • EIA/TIA-568 100 Ω STP (maximum 100 m)1000Base-T :
  • UTP category 5e cable (maximum 100 m)
  • EIA/TIA-568 100 Ω STP (maximum 100 m)
Packet Forwarding Rate 11.9 Mbps
Mac Address Table 4 K
Jumbo Frame 16 KB
Switching Capacity 16 Gbps
IEEE Standards
  • IEEE802.3ab, IEEE802.3i, IEEE802.3p
  • IEEE802.3q, IEEE802.3x, IEEE802.3u
Data Rates
  • Ethernet : 10 Mbps (Half Duplex), 20 Mbps (Full Duplex)
  • Fast Ethernet : 100 Mbps (Half Duplex), 200 Mbps (Full Duplex)
  • Gigabit Ethernet : 2000 Mbps (Full Duplex)
LED Indicator Power, Link/Act LED
Dimensions ( W x D x H ) 6.2 × 3.9 × 1.0 in (158 × 99.1 × 25 mm)
Max Power Consumption
  • 3.98 W (with no PD connected)
  • 18.01 W (24 V with PD connected)
  • 32.74 W (48 V with PD connected)
Max Heat Dissipation
  • 13.57 BTU/h (with no PD connected)
  • 61.41 BTU/h (24 V with PD connected)
  • 111.64 BTU/h (48 V with PD connected)
SOFTWARE FEATURES
Quality of Service
  • Support Port-based/802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
VLAN
  • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-RP108GE
  • Power Cord
  • Installation Guide
  • Rubber Feet
System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
