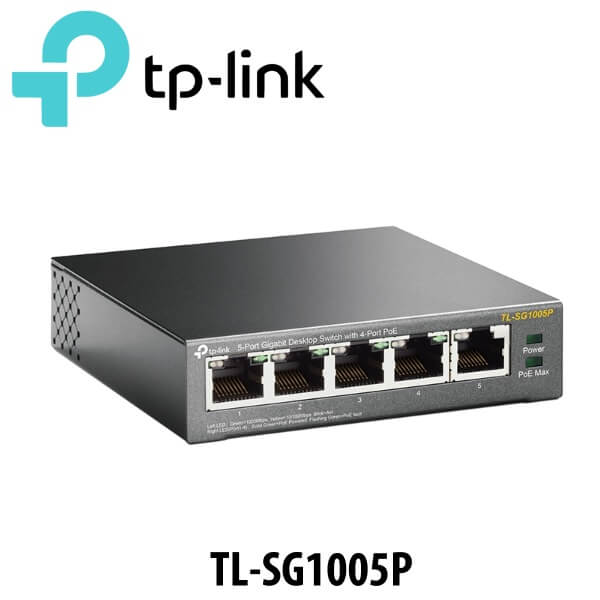

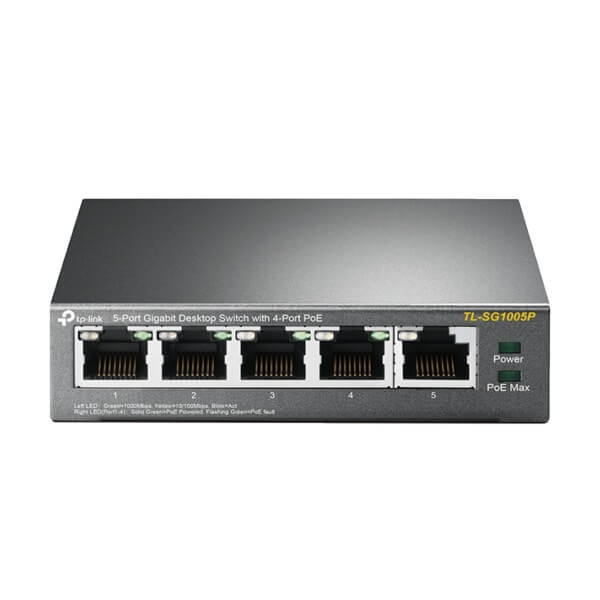

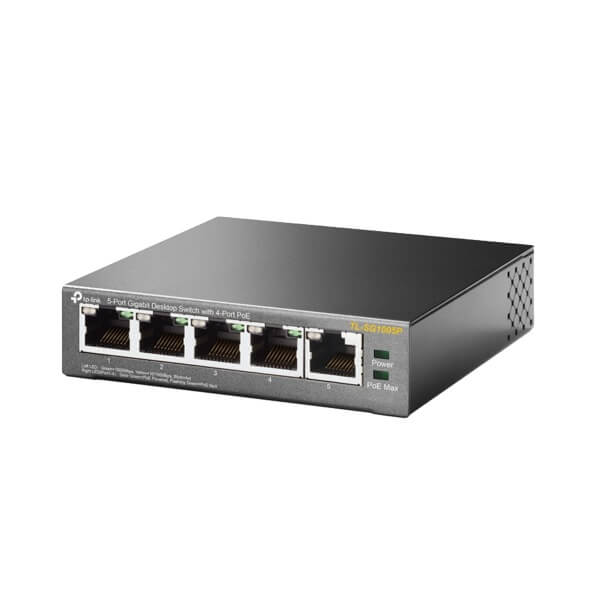

Tplink TL-SG1005P 5-Port Gigabit Network Switch Kenya
Tplink TL-SG1005P Kenya is a 5-Port Gigabit Desktop Switch with 4-Port PoE. With no installation or configuration required, this 5-Port Gigabit PoE+ Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network. Tplink TL-SG1005P Kenya switch comes equipped with five Gigabit Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 65W there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 10 Gb/s and a 2K MAC address table to ensure optimal network performance.
Features
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
Power over Ethernet
Four of the five auto-negotiation RJ45 ports (port 1 to port 4) support Power over Ethernet (PoE). These PoE ports can automatically detect and supply power to IEEE 802.3af Compliant-Powered Devices (PDs).
Overload Arrangement
The Tplink TL-SG1005P Kenya has the priority function which will help protect the system when power is overloaded. If all PoE PDs power consumption exceeds 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
This function means that port 4 will be cut off when total PoE power consumption exceeds 56W. For an example, if Port 1, 2, and 4 are using 15.4W each, the system power is 46.2W total. If there is an additional 10W PD connected to Port 3, the system will cut off power to Port 4 while Ports 1 and 2 will still use 15.4W and Port 3 will use 10W.
Easy to Use
The Tplink TL-SG1005P Kenya is easy to install and use with a simple management utility.
Specifications
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output : 53.5 VDC / 1.31 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) |
|
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
| Max Power Consumption |
|
| Max Heat Dissipation |
|
| SOFTWARE FEATURES | |
| Advanced Features |
|
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents |
|
| Environment |
|
