Tplink TL-SG1218MPE Kenya



Tplink TL-SG1218MPE Kenya

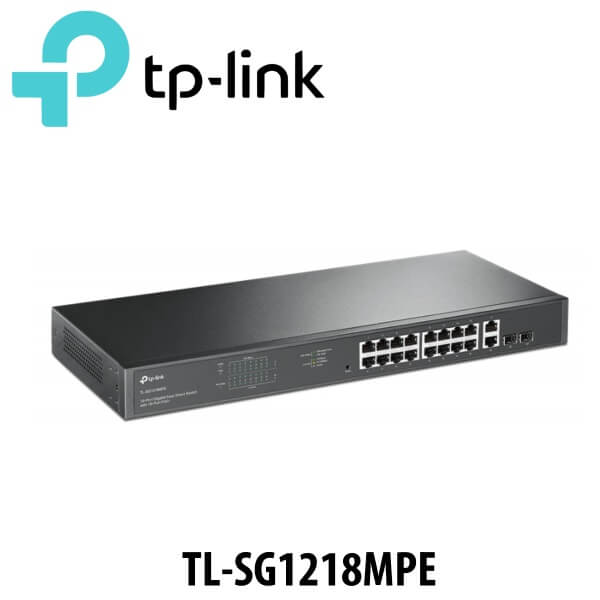

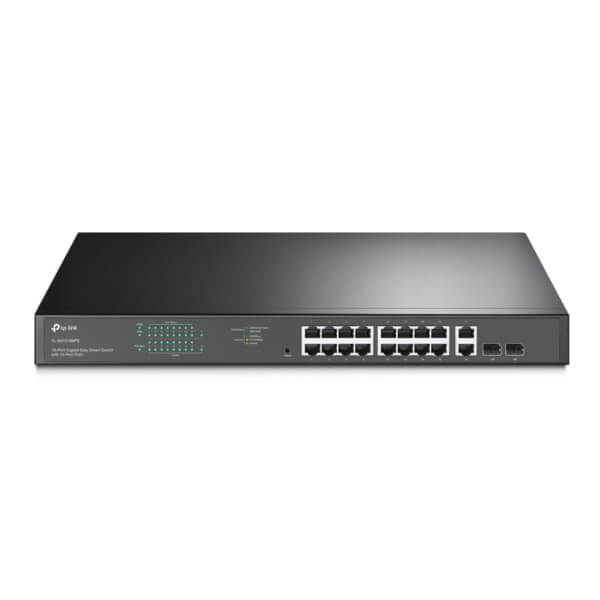

Tplink TL-SG1218MPE Kenya is a PoE switch with all 16 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same Ethernet cable at the same time.

Description

Tplink TL-SG1218MPE PoE Network Switch Kenya

Tplink TL-SG1218MPE Kenya is a PoE switch with all 16 ports supporting the PoE+ standard provides a simple way to expand the wired network while transferring power over the same Ethernet cable at the same time. With a total power budget of 192W, up to 30W per port, and the powerful PoE Module, TL-SG1218MPE can power more high-powered devices such as Access Points, IP Cameras, IP Phones. Moreover, Tplink TL-SG1218MPE Kenya can provide 802.1q VLAN, IGMP Snooping, LAG and other software functions to meet various network configuration needs.

Features

  • 16 PoE+ 10/100/1000Mbps RJ45 ports, 2 Gigabit SFP slots
  • High PoE power budget with up to 30W for each PoE port and 192W for all PoE ports
  • Advanced Features for higher performance like 802.1Q VLAN, 802.1p QoS and IGMP Snooping.
  • Intelligent power management module like PoE Schedule, PoE Priority, PoE Power Limit.

Power over Ethernet for simplified Network Deployment

  • Features 16 802.3af/at compliant PoE+ ports, with a total PoE power budget of 192W
  • Flexible deployment for PoE supported devices such as wireless access points, IP Phones and IP Cameras
  • Tplink TL-SG1218MPE Kenya is designed to use a single Ethernet cable for both data and power transmission, lowering infrastructure costs. Highlight Performance

 Advanced feature

  • QoS optimizes the performance of quality
  • sensitive application like Surveillance Video. And IGMP Snooping ensures the multicast stream be forwarded intelligently to the appropriate subscribers by the switch.
  • After configure the PoE management module, TL-SG1218MPE can control the Power Limit, Port Priority, and PoE Scheduling of each PoE port.

Tplink TL-SG1218MPE Kenya offers Easy to Use functionality

  • Plug & play, no configuration required
  • Auto MDI/MDIX eliminates the need for crossover cables
  • Auto-negotiation intelligently adjusts for compatibility and optimal performance

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface
  • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • 2× Combo Gigabit SFP Ports
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE+ Ports : Ports 1–16
  • Power Supply : 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption
  • 21.4 W (220/50Hz. no PD connected)
  • 296.3 W (220/50Hz. with 250 W PD connected)
Max Heat Dissipation
  • 72.97 BTU/h (no PD connected)
  • 1010.38 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 26.78 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 10 KB
SOFTWARE FEATURES
Quality of Service
  • Support Port-based 802.1p/DSCP priority
  • Support 4 priority queues
  • Rate Limit
  • Storm Control
L2 Features
  • IGMP Snooping V1/V2/V3
  • Static Link Aggregation
  • Port Mirroring
  • Cable Diagnostics
  • Loop Prevention
  • PoE Auto Recovery
VLAN
  • Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
  • MTU/Port/Tag VLAN
Management
  • Web-based GUI
  • Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SG1218MPE
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet
Environment
  • Operating Temperature : 0–50 °C (32–122 °F)
  • Storage Temperature : -40–70 °C (-40–158 °F)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
