Description

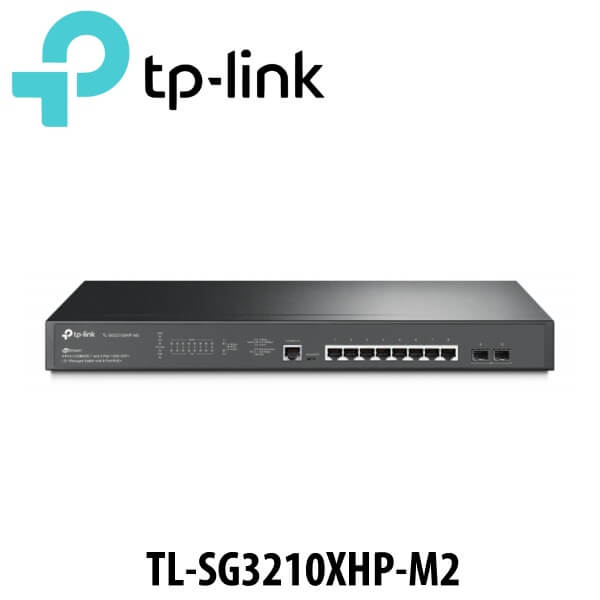

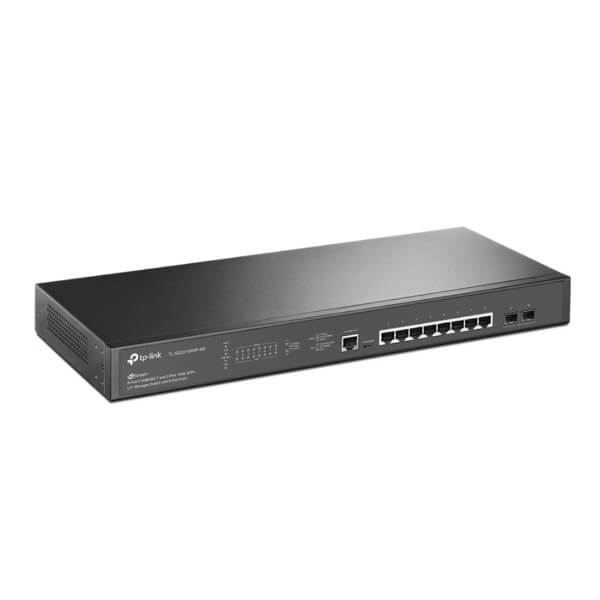

Tplink TL-SG3210XHPM2 Managed Switch Kenya

The Tplink TL-SG3210XHPM2 Kenya is 8-Port Layer 2+ Smart Managed Rackmount 2.5-Gigabit PoE+ Switch providing high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 2.5-Gigabit ports ensure high-speed data transfer, and their backward compatibility with Gigabit products reserves room for network upgrades, therefore guaranteeing stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster.

Featuring 8× 2.5 Gbps PoE+ ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 6 APs. Tplink TL-SG3210XHPM2 Kenya is designed to use a single Ethernet cable for both data and power transmission, it supports up to 240 W total PoE power budget* and flexible installation to fit in various application scenarios. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. The TL-SG3210XHPM2 provides a reliable, secure solution for enterprise, campus and ISP networks.

Features

Enterprise Switch with 10G Uplink

Tplink TL-SG3210XHPM2 Kenya has 2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

Software-Defined Networking (SDN) with Cloud Access

Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Advanced L3 Features

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses, and ISPs.

Secure Networking

Tplink TL-SG3210XHPM2 Kenya security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features

A Tplink TL-SG3210XHPM2 Kenya packs a complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS

Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features

sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Specifications

HARDWARE FEATURES
Interface	8× 100/1000/2500 Mbps RJ45 Ports 2× 10G SFP+ Slots 1× RJ45 Console Port 1× Micro-USB Console Port
Fan Quantity	2
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	Standard : 802.3at/af compliant PoE+ Ports : 8 Ports PoE Power Budget : 240 W*
Dimensions ( W x D x H )	17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting	Rack Mountable
Max Power Consumption	17.2 W (no power device connected) 291.5 W (with 240W power devices connected)
Max Heat Dissipation	58.8 BTU/h (no power device connected) 994.6 BTU/h (with 240W power devices connected)
PERFORMANCE
Switching Capacity	80 Gbps
Packet Forwarding Rate	59.52 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling SP (Strict Priority) WRR (Weighted Round Robin) SP+WRR Bandwidth Control Port/Flow based Rating Limiting Smoother Performance Action for Flows Mirror (to supported interface) Redirect (to supported interface) Rate Limit QoS Remark
L2 and L2+ Features	Link Aggregation static link aggregation 802.3ad LACP Up to 8 aggregation groups, containing 8 ports per group Spanning Tree Protocol 802.1d STP 802.1w RSTP 802.1s MSTP STP Security : TC Protect, BPDU Filter, Root Protect Loopback Detection Port based VLAN based Flow Control 802.3x Flow Control HOL Blocking Prevention Mirroring Port Mirroring CPU Mirroring One-to-One Many-to-One Tx/Rx/Both
L2 Multicast	IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave IGMP Snooping Querier IGMP Authentication IGMP Authentication MLD Snooping MLD v1/v2 Snooping Fast Leave MLD Snooping Querier Static Group Config Limited IP Multicast MVR Multicast Filtering : 256 profiles and 16 entries per profile
VLAN	VLAN Group Max 4K VLAN Groups 802.1Q Tagged VLAN MAC VLAN : 7 Entries Protocol VLAN : Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN (QinQ) Port-Based QinQ Selective QinQ Voice VLAN
Access Control List	Time-based ACL MAC ACL Source MAC Destination MAC VLAN ID User Priority Ether Type IP ACL -Source IP Destination IP Fragment IP Protocol TCP Flag TCP/UDP Port DSCP/IP TOS User Priority Combined ACL Packet Content ACL IPv6 ACL Policy Mirroring Redirect Rate Limit QoS Remark ACL apply to Port/VLAN
Security	IP-MAC-Port Binding 512 Entries DHCP Snooping ARP Inspection IPv4 Source Guard : 100 Entries IPv6-MAC-Port Binding 512 Entries DHCPv6 Snooping ND Detection IPv6 Source Guard : 100 Entries DoS Defend Static/Dynamic Port Security Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control kbps/ratio control mode 802.1X Port base authentication Mac base authentication VLAN Assignment MAB Guest VLAN Support Radius authentication andaccountability AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC based access control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications DHCPv6 Client Ping6 Tracert6 Telnet (v6) IPv6 SNMP IPv6 SSH IPv6 SSL Http/Https IPv6 TFTP
L3 Features	16 IPv4/IPv6 Interfaces Static Routing 48 static routes Static ARP 128 Static Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay
Management	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
Advanced Features	Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ZTP (Zero-Touch Provisioning)**
MIBs	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB
MANAGEMENT
Omada App	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3 Trap/Inform RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Package Contents	TL-SG3210XHPM2 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Environment	Operating Temperature : 0–50 ℃ (32–122 ℉); Storage Temperature : -40–70 ℃ (-40–158 ℉) Operating Humidity : 10–90% RH non-condensing Storage Humidity : 5–90% RH non-condensing
