Tplink TL-SL1218MP Kenya



Tplink TL-SL1218MP Kenya

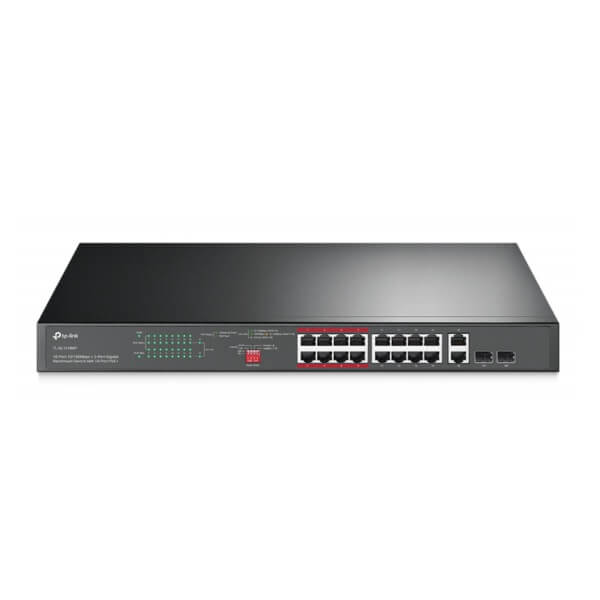

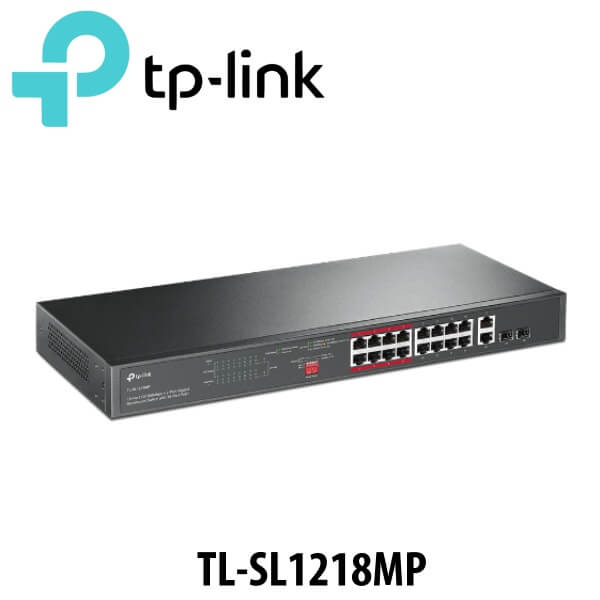

Tplink TL-SL1218MP Kenya is an unmanaged Fast Ethernet switch with 16 PoE+ ports, 2 Gigabit RJ45 ports and 2 Gigabit SFP combo slots. The device allows for power and data transmission over a distance 250 m in PoE Extend mode.

Description

Tplink TL-SL1218MP Network Switch Kenya

Tplink TL-SL1218MP Kenya is an unmanaged Fast Ethernet switch with 16 PoE+ ports, 2 Gigabit RJ45 ports and 2 Gigabit SFP combo slots. The device allows for power and data transmission over a distance 250 m in PoE Extend mode. Total PoE power budget is 192 W, which is 30 W per port. The switch is easy to use, no configuration or installation required. Tplink TL-SL1218MP Kenya works in 802.3af/at (PoE+) standard. The switch is able to power devices with 192 W total, as each port provides up to 30 W of power. Such a solution will be ideal for small and medium company monitoring systems.

Features

  • 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots.
  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports.
  • Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
  • Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor.
  • Isolation Mode allows one-click client traffic separation for higher security and performance.
  • Easy to use, with no configuration and installation needed.

250meters range

Tplink TL-SL1218MP Kenya has been designed for IP monitoring. With the PoE switch, installation of the surveillance system is easy, secure and less expensive. With the PoE Extend mode, the PoE transmission range reaches 250 m, so TL-SL1218MP is the perfect solution when you need to deploy IP cameras over a large area.

Video quality at the highest level

For more demanding applications, e.g. video surveillance, Tplink TL-SL1218MP Kenya gives higher priority to selected ports, ensuring smooth and high quality transmission

Specifications

HARDWARE FEATURES
Interface
  • 16 PoE+ 10/100 Mbps RJ45 Ports
  • 2× 10/100/1000 Mbps RJ45 Ports
  • 2× Combo Gigabit SFP Slots
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100–240V AC, 50/60 Hz
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE Ports : Ports 1–16
  • PoE Power Budget : 250 W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in
(440 × 180 × 44 mm)
Max Power Consumption
  • 15.0 W (no PD connected)
  • 285.8 W (with 250 W PD connected)
Max Heat Dissipation
  • 51.1 BTU/h (no PD connected)
  • 974.6 BTU/h (with 250 W PD connected)
PERFORMANCE
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
MAC Address Table 8K
Jumbo Frame 10 KB
SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3at/af Compliant PDs
  • Extend Mode (Up to 250m PoE power supply and data transmission)
  • Priority Mode
  • Isolation Mode
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents
  • TL-SL1218MP
  • Power Cable
  • Installation Guide
  • Two mounting brackets and the fittings
Environment
  • Operating Temperature : 0–50 °C (32–122 °F)
  • Storage Temperature : -40–70 °C (-40–158 °F)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
