Description
Tplink TL-SM5110LR Transceiver Kenya

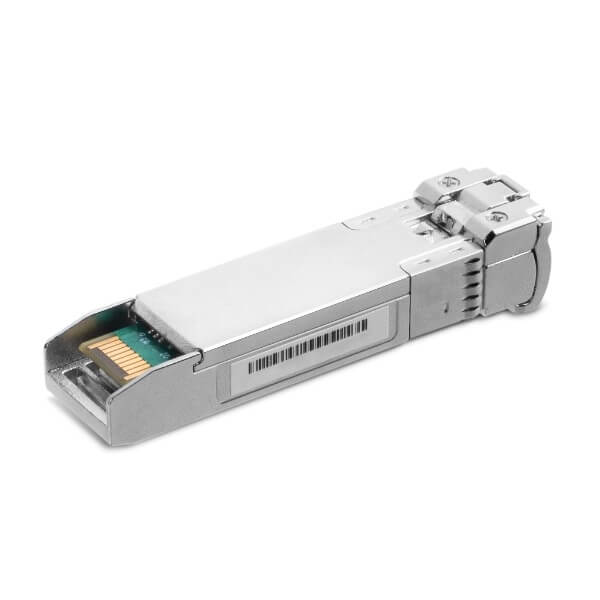

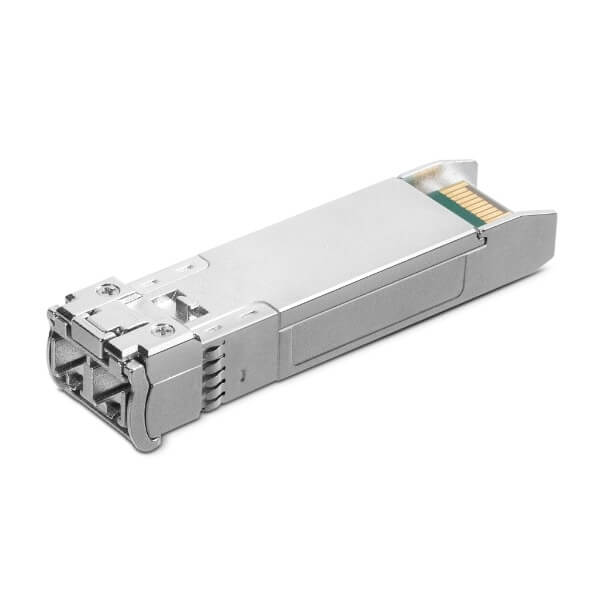

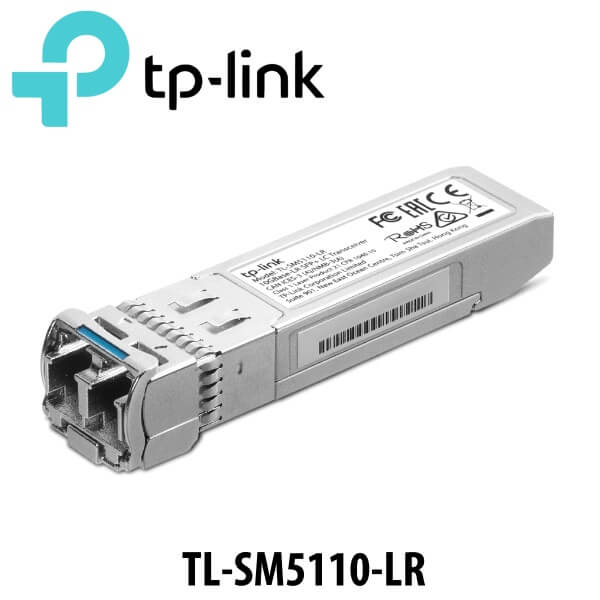

The Tplink TL-SM5110LR Kenya is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. Tplink TL-SM5110LR Kenya supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
Tplink TL-SM5110LR offer a reliable data transfers with your long-distance installations. With support for the 10GBASE-LR standard at a frequency of 1310nm wavelength, this single-mode SFP+ LC transceiver can transfer up to 10 Gb/s across distances as far as 6.2 miles using 9/125µm fiber cables. The TL-SM5110LR supports full duplex and is hot-pluggable.
Features
- 10GBase-LR SFP+ LC Transceiver
- Single-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)
- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
Specifications
| PACKAGE CONTENTS | |
| Package Contents |
|
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| TRANSCEIVER | |
| Standards and Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. Cable Length | 10 km |
| Data Rate | 10 Gbps |
| Port Type | LC Duplex |
| Safety & Emission | FCC, CE |
| Environment |
|
