Ubiquiti AirFiber11-CompleteHB Wi-Fi Bridge Kenya

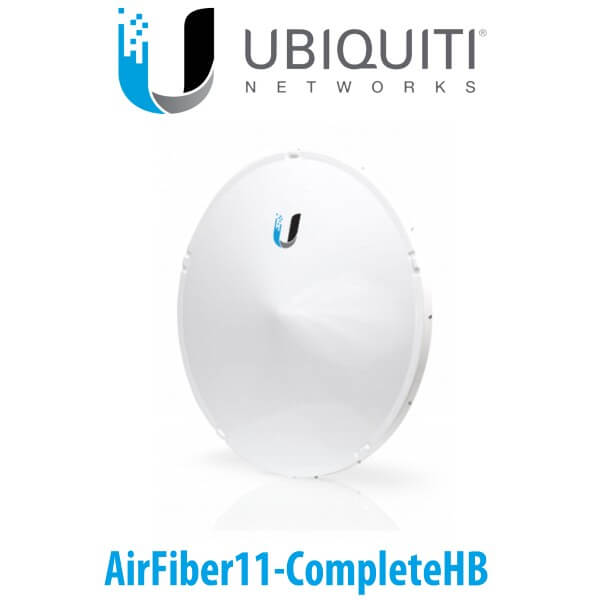

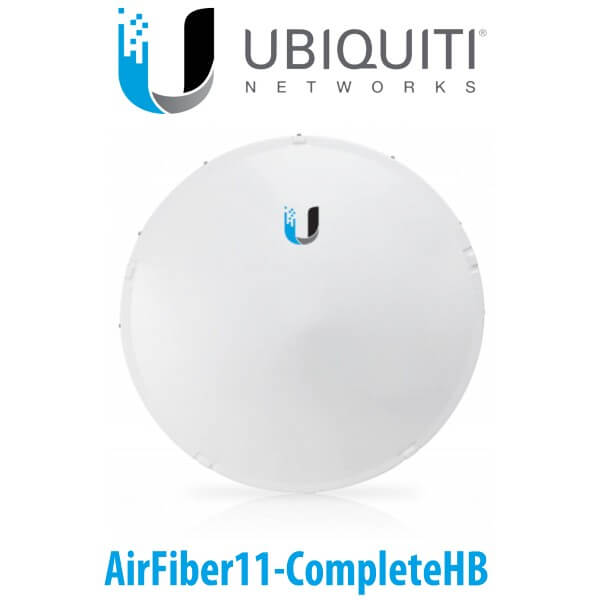

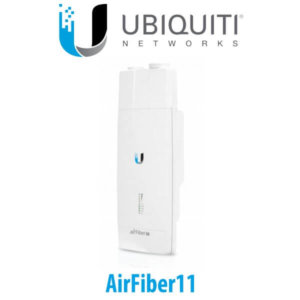

The Ubiquiti AirFiber11-CompleteHB Kenya is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market that breaks free from the congested 5 GHz band. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Incorporating a dish reflector design for excellent beam directivity, the Ubiquiti AirFiber11-CompleteHB Kenya antenna features robust mechanical design using industrial-strength hardware for outdoor application use.
Features
- Full duplex point-to-point radio
- 11 GHz frequency operation
- Up to 1.2+ Gbps throughput
- Includes one high-band duplexer for SISO mode (MIMO mode requires an optional second duplexer)
- Integrates with AF-11G35 11 GHz antenna
- Supports separate TX/RX frequencies
- Accepts PoE or DC power
Powerful Performance
The Ubiquiti AirFiber11-CompleteHB Kenya antenna delivers SISO or 2×2 MIMO, dual-polarity performance. On the right is one example of how the AF-11G35 antenna with the AF-11FX radio can be deployed as endpoints in a backhaul link to deliver bandwidth from a WISP network out to a neighborhood tower. From there, an airMAX® Sector antenna with a Rocket® radio delivers bandwidth to the WISP’s customers.
Upgrade to Licensed, Full‑Duplex 11 GHz
For existing Ubiquiti Networks® AF-5 and AF-5U installations, the Ubiquiti AirFiber11-CompleteHB Kenya provides a quick, convenient upgrade path to the licensed 11 GHz band. The airFiber AF-11-completeHB uses the same antenna mount as the airFiber AF-5 and AF-5U – by simply swapping out an AF-5 or AF-5U with the AF-11G35, you can quickly and easily upgrade an unlicensed, full-duplex 5 GHz link to a licensed, full-duplex 11 GHz link.
Carrier-Class Construction
Incorporating a dish reflector design for excellent beam directivity, the Ubiquiti airFiber11-CompleteHB Kenya antenna features robust mechanical design using industrial-strength hardware for outdoor application use.
Plug and Play Integration

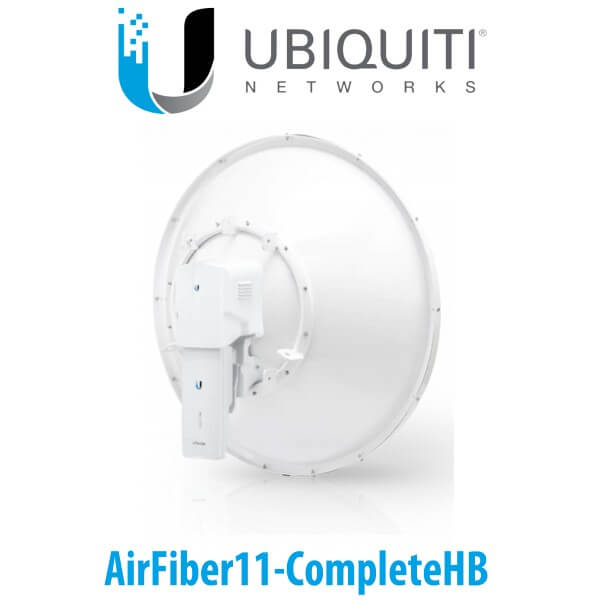

The Ubiquiti AirFiber11-CompleteHB Kenya antenna has a built-in mount for the AF-11FX radio, so installation requires no special tools. Snap the airFiber AF-11FX radio securely into place and mount the antenna; you then have the optimal airFiber X antenna and radio combination for your 11 GHz PtP application.
Innovative, Weatherproof Design
Ubiquiti AirFiber11-CompleteHB Kenya secure Pole-Mounting Maintains the position of the dish during harsh outdoor conditions. Also, Protective Shroud Protects the cables and connectors from the elements. While, Integrated Radome Shields the radio from the environment.
Specifications :
| AirFiber AF-11 | |
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39″) |
| Weight | 2.26 kg (5.0 lb) |
| RF Connectors | (4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet, DC Power Block) |
| Power Supply | UniFi PoE Switch |
| Supported Voltage Range | 38-56VDC |
| Certifications | FCC Part 101, ETSI EN 302 217 |
| Mounting | AF-11G35 Mount Compatible |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Networking Interface Data Management |
(1) 10/100/1000 Ethernet Port |
| System | |
| Processor | INVICTUS™ 2 IC |
| Maximum Throughput | 1.2+ Gbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | SISO/MIMO |
| Operating Frequency | 10.7-11.7 GHz (Depends on Regulatory Region*) |
| Max. Conducted TX Power | 30 dBm (Depends on Regulatory Region*) |
| Frequency Accuracy | ± 1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable** Programmable Uplink and Downlink Duty Cycles |
| AirFiber AF‑11G35 | |
| Dimensions | 811 x 811 x 460 mm (31.9 x 31.9 x 18.1″) |
| Weight Mount Not Included Mount Included |
7.14 kg (15.74 lb) 11.85 kg (26.12 lb) |
| Frequency | 10.3 to 11.7 GHz |
| Gain | 35 dBi |
| HPOL Beamwidth | 2.5° |
| VPOL Beamwidth | 2.5° |
| Maximum VSWR | 2:1 |
| Wind Loading | 1538 N @ 200 km/h (346 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Polarization Default After Rotating OMT |
H/V |
| Cross-Pol Isolation | 35 dB |
| Mounting | Pole Mount |
| Pattern Regulatory | ETSI 302 217-4-2, Class 3 and FCC Cat B |
