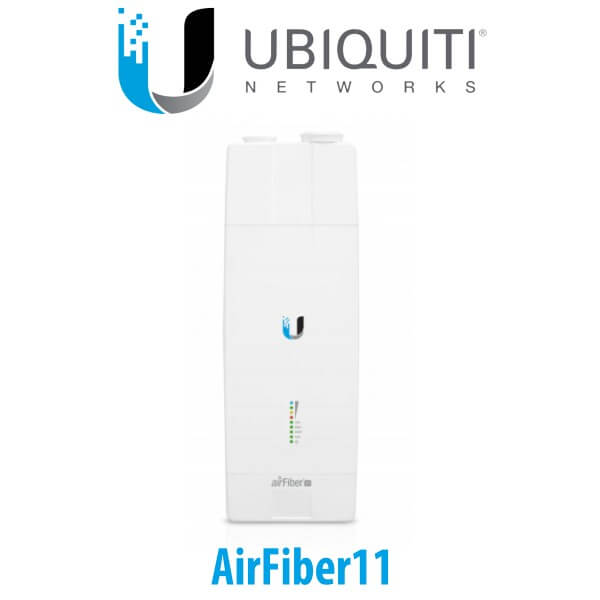

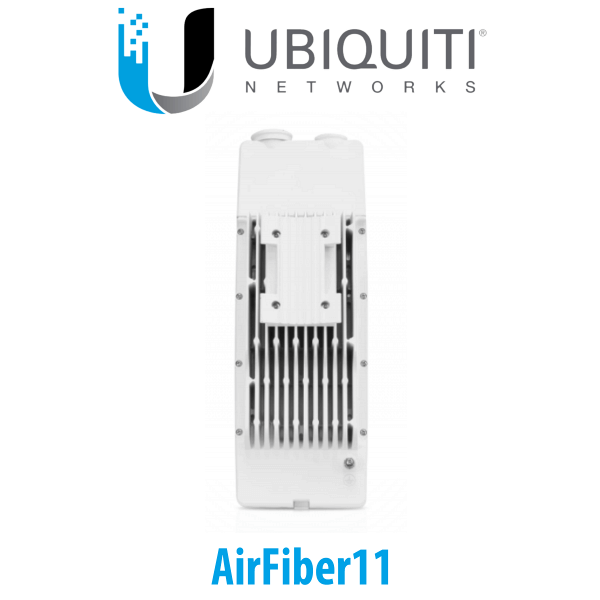

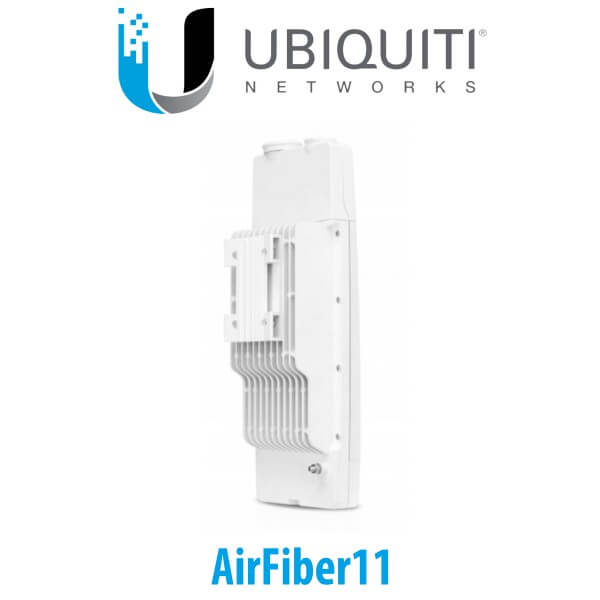

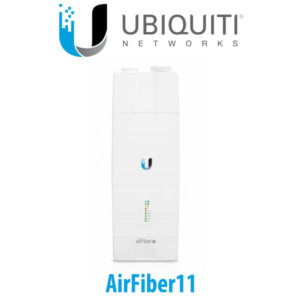

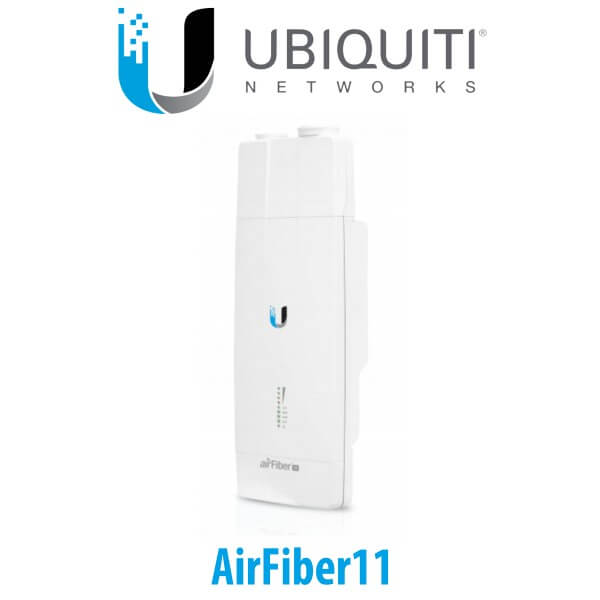

Ubiquiti AirFiber11 Wi-Fi Bridge Kenya
The Ubiquiti AirFiber11 Kenya is a compact, point-to-point radio system that operates at 11 GHz frequency. It is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market. Housed in a compact, highly efficient form factor, Ubiquiti AirFiber11 Kenya delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Features
- Full duplex Point-to-Point radio
- 11 GHz frequency operation
- Up to 1.2+ Gbps throughput
- Proprietary INVICTUS processor
- Integrates with airFiber 11 GHz antennas
- Utilizes distinct Rx and Tx frequencies
- Accepts PoE or DC power
- Secure 128-bit AES encryption
Advanced technology
Ubiquiti’s individual silicon and proprietary INVICTUS™ 2 radio architecture is specifically designed for long-range wireless outdoor applications, providing excellent performance, long-range capabilities and higher throughput.
Two methods of power supply
Support for PoE or DC power supply provides the flexibility of Ubiquiti AirFiber11 Kenya power supply regardless of Ethernet traffic.
Double-sided duplexers
Ubiquiti AirFiber11 Kenya requires one or two duplexers (sold separately; AF-11-DUP-H and AF-11-DUP-L models).
Two different ways of using the channel
The Ubiquiti AirFiber11 Kenya can use single SISO or associated MIMO channels, depending on specific licensing requirements. The AF-11 also has different channel widths to suit your placement needs, and you can independently configure the channel frequencies TX and RX.
Specifications
| Dimensions | 327 x 112 x 86 mm (12.87 x 4.41 x 3.39″) |
| Weight | 2.26 kg (5.0 lb) |
| RF Connectors | (4) SMA Weatherproof, Two per Chain : TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer |
| Power Supply | 50V, 1.2A PoE Gigabit Adapter (Included) |
| Power Method | Passive Power over Ethernet, DC Power Block |
| Supported Voltage Range | 38-56VDC |
| Certifications | FCC Part 101, ETSI EN 302 217 |
| Mounting | AF-11G35 Mount Compatible |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |

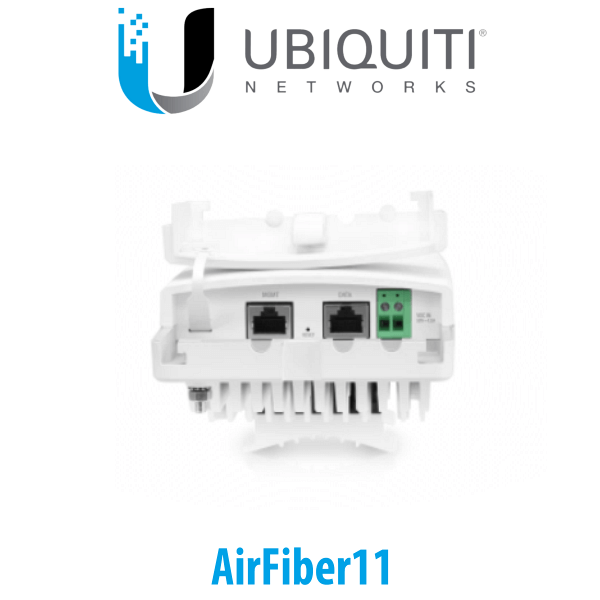

| Networking Interface Data Management |
(1) 10/100/1000 Ethernet Port (1) 10/100 Ethernet Port |
| System | |
| Processor | INVICTUS™ 2 IC |
| Maximum Throughput | 1.2+ Gbps |
| Encryption | 128-bit AES |
| OS | airOS F |
| Wireless Modes | SISO/MIMO |
| Radio | |
| Operating Frequency | 10.7-11.7 GHz (Depends on Regulatory Region*) |
| Max. Conducted TX Power | 30 dBm (Depends on Regulatory Region*) |
| Frequency Accuracy | ± 1 ppm |
| Channel Bandwidth | 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz Selectable** Programmable Uplink and Downlink Duty Cycles |
