Description

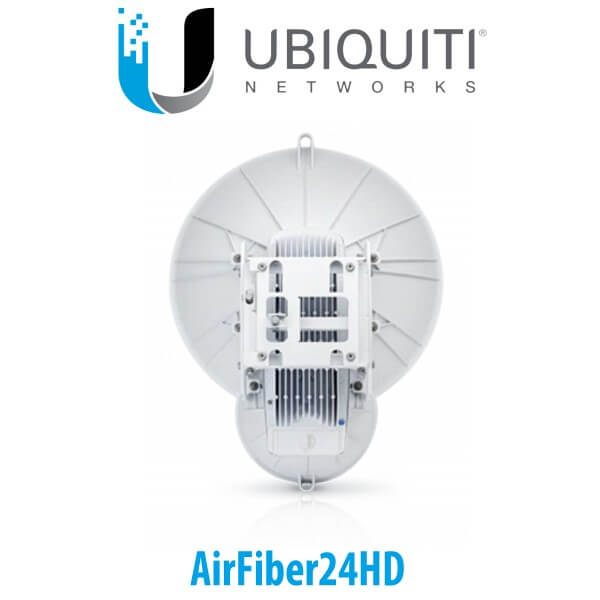

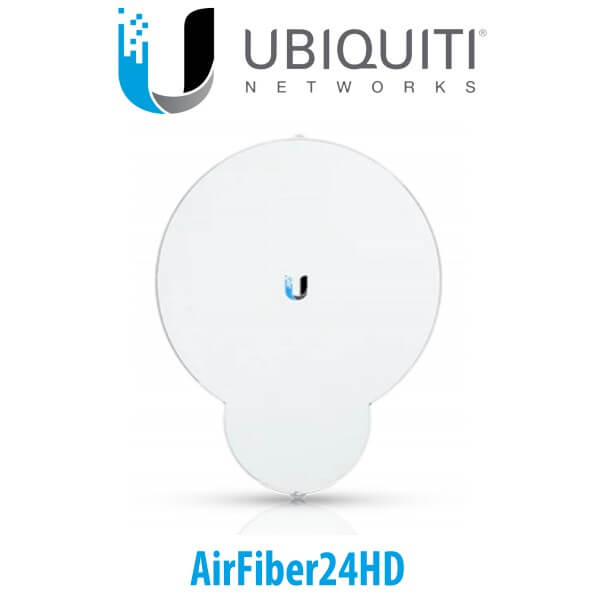

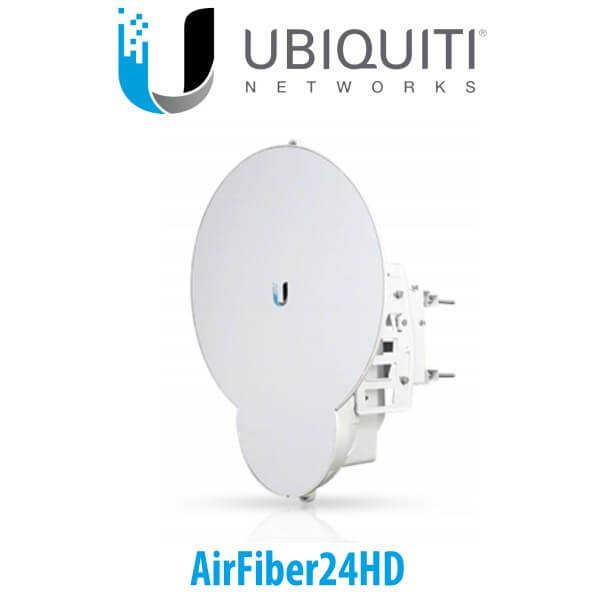

Ubiquiti AirFiber24HD Wi-Fi Bridge Kenya
The Ubiquiti AirFiber24HD Kenya features Revolutionary Wireless Technology. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Supports 24 GHz frequencies. Based on the ranging algorithm built into the air protocol, the Ubiquiti AirFiber24HD Kenya radios use patent-pending HDD technology to calculate the propagation delay and know when each radio can transmit and receive, so they send packets in precise synchronization. Packet transmission latency is virtually eliminated. Ubiquiti air Fiber 24HD Kenya radio has two complete antenna systems and a mechanical back-plane that are constructed as a one-piece “monocoque” molding – a radical departure from industry practice. “Monocoque” means that the exterior skin supports the structural load of airFiber hardware. Due to its single-piece, injection-molded architecture, airFiber adds lightness in weight and affordability to its list of advantages.
Features:
- Ideal for carrier backhaul, building-to-building networking, and public safety applications
- Supports 24 GHz frequencies
- 20+ km transmission range
- Powered with the included 50V, 1.2A PoE Gigabit Ethernet adapter
- 10/100 Ethernet port
- 10/100/1000 Ethernet port
- RJ-12 alignment tone port
- 2 Gbps aggregate throughput
- 50W maximum power consumption
- (8) status LEDs that denote port speed, activity, RF status, and GPS synchronization
- Included pole mounting kit
Advanced Antenna System
Featuring a dual-independent 2×2 MIMO 24GHz hi-gain reflector antenna system, Ubiquiti AirFiber24HD Kenya can operate in both FDD (Frequency Division Duplex) and HDD (Hybrid Division Duplex) modes for unparalleled speed and spectral efficiency in the 24GHz worldwide license-free band.
Revolutionary Wireless Technology
Introducing airFiber, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks™. Housed in a compact, highly efficient form factor, Ubiquiti AirFiber24HD Kenyar\ delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Efficient by Design
Every detail of Ubiquiti AirFiber24HD Kenya is designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created Ubiquiti AirFiber24HD Kenya to deliver superior throughput with efficiency. airFiber was purposely built to create a high performance backhaul.
Plug and Play Deployment
Based on Ubiquiti’s innovative and intuitive airOS™, the airFiber Configuration Interface enables quick configuration and deployment. With installation efficiency in mind, the mechanical design allows easy installation by one person. A two-person installation crew can effectively install and align an airFiber link.
To fine-tune the alignment, the received signal levels can be conveniently accessed via any of these methods:
- airFiber LED display
- airFiber Configuration Interface
- audio tone feature
Designed for Freedom
Ubiquiti AirFiber24HD Kenya operates in worldwide, license-free 24 GHz frequencies. Anyone around the world can purchase and operate airFiber without any special permits, paperwork, or added licensing costs. Users are free to locate, deploy, and operate airFiber practically anywhere they choose (subject to local country regulations).
Built for Speed and Range
Ubiquiti AirFiber24HD Kenya delivers gigabit performance at 1.2+ Gbps for airFiber AF-5/AF-5U, 1.4+ Gbps for airFiber AF-24, and 2 Gbps for airFiber AF-24HD. To put this in perspective, airFiber can transmit a 100 MB file in less than a second. Rivaling common broadband providers, airFiber download speed is up to 100x faster. With speed and throughput surpassing conventional wired backhauls, airFiber prevails over expensive and labor-intensive wired infrastructures.
Innovative Proprietary Modem Technology
Ubiquiti’s innovative proprietary modem technology was purpose-built to address the specific challenges of outdoor, PtP (Point-to-Point) bridging and high-performance network backhauls. Every aspect of the radio has been carefully simulated and designed to optimize range, speed, and latency performance in the harshest RF noise environments.
Synchronous Data Transmission and Reception
Conventional wireless standards impose a latency by having to receive a packet before a packet is transmitted. Ubiquiti airFiber24HD Kenya can transmit data synchronously without any wait time. Ubiquiti air Fiber 24HD Kenya features traditional TDD and FDD modes of operation in addition to the proprietary Hybrid Division Duplexing (HDD) mode, which provides a breakthrough in range and spectral efficiency performance.
Innovative Dual-Antenna Architecture
The Ubiquiti airFiber24HD Kenya features a dual-independent, 2×2 MIMO, high-gain reflector antenna system. Separate transmit (TX) and receive (RX) antennas help extend link budgets by eliminating the extra RF losses caused by the switches or duplexers required in systems with common TX/RX antennas.
Network Management
Ubiquiti AirFiber24HD Kenya supports a variety of features to help you manage your network:
- Network management options – A choice between the greater security of out-of-band management and the convenient of in-band management.
- SNMP support – Full SNMP support to aid in network management.
- Local and remote airFiber status information – Available on the Main tab of the airFiber Configuration Interface.
Specification
Operating Frequency | 24.05 – 24.25 GHz |
Dimensions | 593 x 768 x 370 mm (23.35 x 30.24 x 14.57″) |
Weight | 17.3 kg (38.14 lb) Mount Included |
Max. Power Consumption | 50W |
Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
Power Method | Passive Power over Ethernet |
Supported Voltage Range | 42-58VDC |
Certifications | CE, FCC, IC |
Wind Loading | 770 N @ 200 km/hr (170 lbf @ 125 mph) |
Wind Survivability | 200 km/hr (125 mph) |
Mounting | Pole Mount Kit (Included) |
Operating Temperature | -40 to 55°C (-40 to 131° F) |
LEDs |
|
Interface | |
Data Port | (1) 10/100/1000 Ethernet Port |
Configuration Port | (1) 10/100 Ethernet Port |
Auxiliary Port | (1) RJ-12, Alignment Tone Port |
Maximum Throughput | 2 Gbps |
Maximum Range | 20+ km |
Packets per Second | > 1 Million |
Encryption | 128-Bit AES |
Uplink/Downlink Ratio | 50% Fixed |
airFiber AirFiber24HD Radio Frequency | |
GPS | GPS Clock Synchronization |
Transceiver | |
EIRP | ~33 dBm (FCC/IC), ~20 dBm (CE) |
Frequency Accuracy | ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization |
Channel Bandwidth | 100 MHz |
Operating Channels | 24.1 GHz, 24.2 GHz |
Modulation |
|
Integrated Split Antenna | |
TX Gain | 33 dBi |
RX Gain | 40 dBi |
Beamwidth | < 3.5° |
Front-to-Back Ratio | 70 dB |
Polarity | Dual-Slant Polarization |
Cross-Polarity Isolation | > 28 dB |
