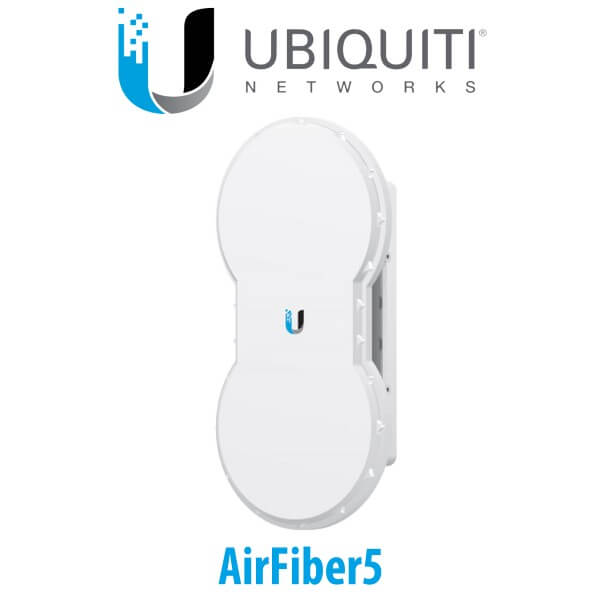

Ubiquiti AirFiber5 Wi-Fi Bridge Kenya

The Ubiquiti AirFiber5 Kenya is a revolutionary backhaul point-to-point radio system. Offering 5GHz with 100Km+ range at incredible 1Gbps+ speeds, the airFiber5 will take advantage of popular worldwide mid-band frequencies. Ubiquiti AirFiber5 Kenya features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. air Fiber AirFiber5 accurately and continuously controls transmit power relative to the band edge. The unique sliding-clamp design of Ubiquiti AirFiber5 Kenya allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the air Fiber radio during installation

Features

• 1Gbps+ throughput
• 50MHz channel
• Full Duplex
• 100Km+ Range
• Brand new alignment UI
• Industry disruptive price point
• Product Model Number: AF-5-LINK

Innovative Antenna Design

The Ubiquiti AirFiber5 Kenya features high-isolation, dual-antenna design is ideal for robust performance in the harshest RF noise environments.

Revolutionary Performance

Surpassing conventional wired backhauls, the airFiber®5 delivers real throughput of up to 1.2+ Gbps.

Long-Range Links: 100+ km

Designed to be a high-performance backhaul, the airFiber5 performs at a range of up to 100+ km.

Low-Latency Carrier Backhaul

The airFiber5 supports FDD (Frequency Division Duplexing) in full-duplex mode for < 1 ms latency, resulting in increased efficiency for carrier-class network backhauls.

Superior Processing

Ubiquiti Networks introduces our proprietary INVICTUS core communications processing engine. The speed, power, and efficiency of this integrated circuit enhances the performance of airFiber AirFiber5.

Efficient Use of 5 GHz Band

Ubiquiti air Fiber5 Kenya features 1 MHz center channel resolution with market-leading Power Envelope Tracking technology. Ubiquiti AirFiber5 Kenya accurately and continuously controls transmit power relative to the band edge. The power level automatically tracks to optimize performance near band edges, allowing you to choose the part of the band with thpo t6 e least interference.

Long-Range Links

Newly developed for Ubiquiti AirFiber5 Kenya, the patent-pending xRT feature uses an innovative, adaptive multi-channel coding scheme to enhance radio transceiver performance, thereby maximizing your link budget and spectrum utilization – while still maintaining regulatory compliance. This results in links that can span distances from 10 m up to 100+ km.

Quick and Easy Installation

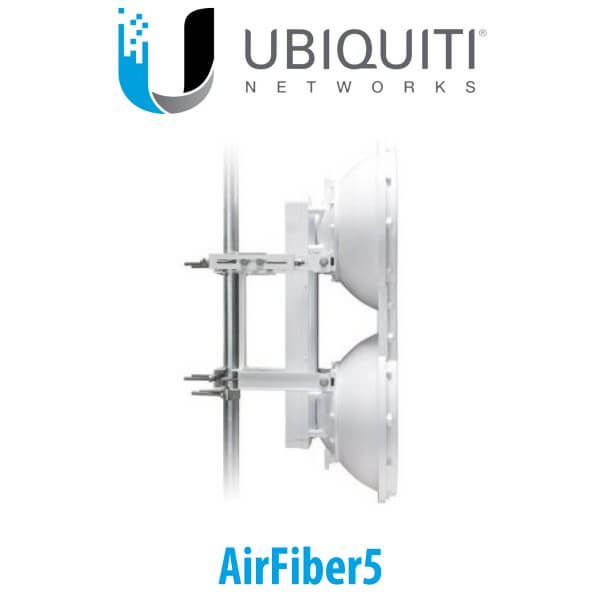

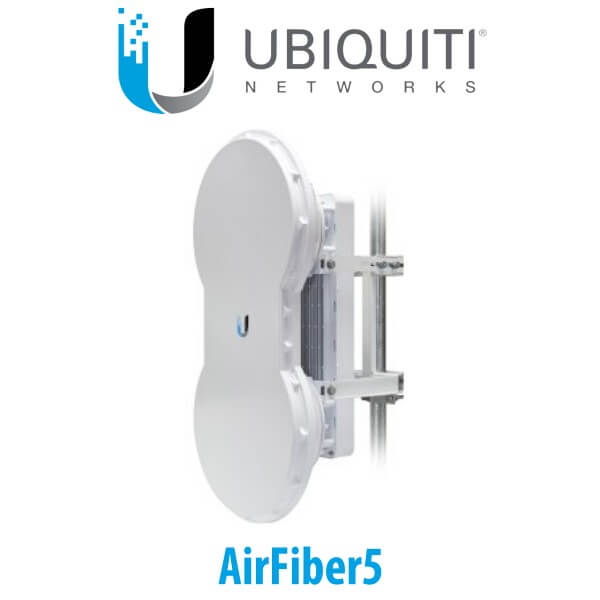

The unique sliding-clamp design of airFiber AirFiber5 allows mounting hardware to be pre-assembled prior to installation – no more dropped screws at the top of the tower. As an added convenience, the drop-in cradle mount design allows the installer to attach mounting hardware to the pole without having to support the weight of the airFiber radio during installation

Specifications

General

• Dimensions :
  – Radio : 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08″)
  – Box : 1042 x 573 x 502 mm (41.02 x 22.56 x 19.76″)
• Weight :
  – Radio (Mount Included) : 16 kg (35.27 lb)
  – Box : 26.5 kg (58.42 lb)
• Max. Power Consumption : 40W
• Power Supply : 50V, 1.2A PoE GigE Adapter (Included)
• Power Method : Passive Power over Ethernet
• Supported Voltage Range : +42 to +58VDC, -48VDC
• Automatic Transmit Power Control (ATPC) : Yes
• Certifications : CE, FCC, IC
• Mounting : Pole Mount Kit (Included)
• Wind Loading : 863 N @ 200 km/hr (194 lbf @ 125 mph)
• Wind Survivability : 200 km/hr (125 mph)
• Operating Temperature : -40 to 55° C (-40 to 131°F)
• LEDs (12) Status LEDs :
  – Data Port Link/Activity
  – Data Port Speed
  – Management Port Link/Activity
  – Management Port Speed
  – GPS Synchronization
  – Master/Slave
  – Link Status
  – Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
  – Remote and Local Displays (Calibrated Signal Strength)

Operating Frequency

• FCC 15.247, 15.407, IC RSS-210: 5470 – 5600 MHz, 5650 – 5850 MHz
• ETSI EN 301 893, EN 302 502: 5470 – 5875 MHz
• Other Regions : 5470 – 5950 MHz

Interface

• Data Port : (1) 10/100/1000 Ethernet Port
• Management Port : (1) 10/100 Ethernet Port
• Auxiliary Port : (1) RJ-12, Alignment Tone Port

System

• Maximum Throughput : 1.2+ Gbps
• Maximum Range : 100+ km (Dependent on Regulatory Region)
• Packets per Second : 1+ Million
• Encryption : 128-Bit AES
• Uplink/Downlink Ratio : 50% Fixed
• Latency: Full Duplex Mode : < 200 µs at Full Throughput – Half Duplex Mode: < 2 ms at Full Throughput
• Radio Frame Synchronization : GPS
• Dynamic Frequency Selection : CE, FCC/IC
• MTU (Maximum Transmission Unit) : Up to 9600

Suggested Max. TX Power

• 10x : 39 dBm
• 8x : 43 dBm
• 6x : 45 dBm
• 4x and below : 47 dBm

Radio Frequency

• GPS : GPS Clock Synchronization

Transceiver

• EIRP : ~50 dBm (Dependent on Regulatory Region and Frequency Band)
• Frequency Accuracy :
  – ±2.5 ppm without GPS Synchronization
  – ±0.2 ppm with GPS Synchronization
• Channel Bandwidth : 10/20/30/40/50 MHz
• Modulation :
  – 1024QAM MIMO
  – 256QAM MIMO
  – 64QAM MIMO
  – 16QAM MIMO
  – QPSK MIMO
  – ½ Rate QPSK xRT
  – ¼ Rate QPSK xRT

Integrated Split Antenna

• TX Gain : 23 dBi
• RX Gain : 23 dBi
• Beamwidth : 6°
• Front-to-Back Ratio : 70 dB
• Polarity : Dual-Slant Polarization
• Cross-Polarity Isolation : > 28 dB
