Description

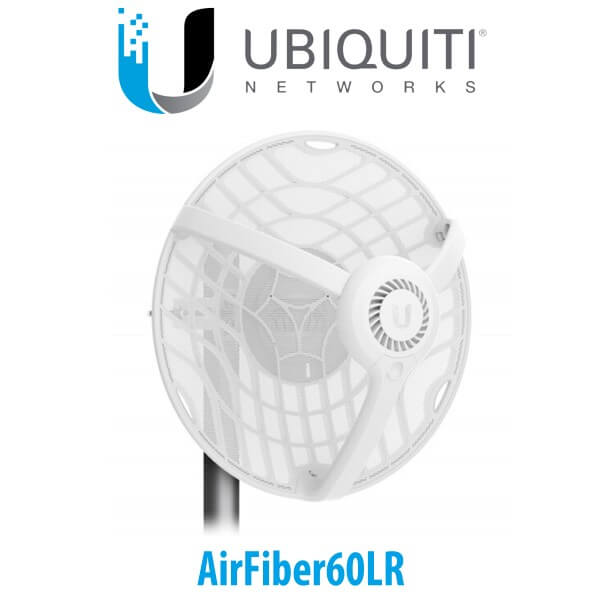

Ubiquiti AirFiber60LR Wi-Fi Bridge Kenya
The Ubiquiti AirFiber60LR Kenya is a 60 GHz Long-range Radio featuring a revolutionized system that uses Wave Technology to establish long-distance, true-duplex Gigabit links. Equipped with a high-gain dish antenna, the AF60 LR can reach a 1.9 Gbps maximum throughput rate and sustain its links over 12 km. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully configured with the UISP® application (web/mobile). Ubiquiti AirFiber60LR Kenya can also be seamlessly integrated into an existing deployment with Ubiquiti’s dedicated link planning platform and tracked from anywhere with its built-in GPS antenna. A precision alignment pole mount is included alongside a 48V Gigabit PoE adapter, which connects to the dish’s Gigabit Ethernet port to provide power and data passthrough. Other features include an integrated GPS and WPA2-PSK signal encryption.
Features
- Low-interference 60 GHz spectrum
- High-gain dish antenna
- Maximum throughput: 1.9 Gbps
- Link range: 12+ km
- Link planning support
- Integrated GPS antenna

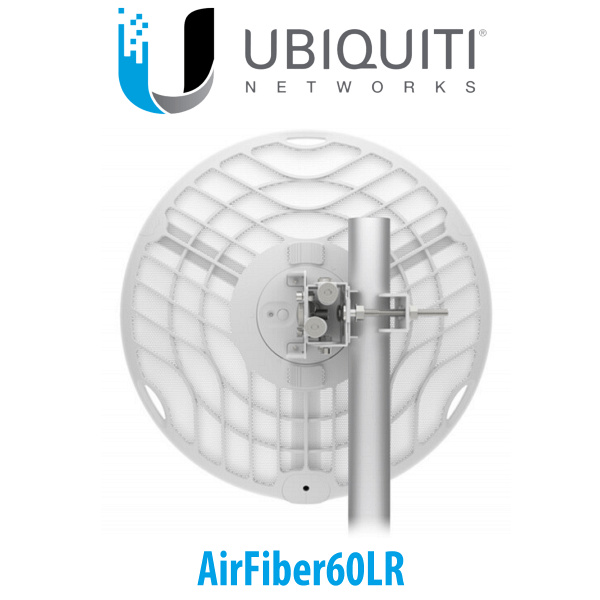

- Included precision angle mount
- Easy-to-install snow cover
- Simple, Bluetooth-powered setup with a Mobile app
Exceptionally Long Connection Range
The airFiber 60 LR wireless bridge has a range of up to 7.5 miles. The outdoor dish antenna is designed to provide low-interference, high-throughput connectivity at ranges up to 7.5 miles and a maximum data throughput of 1.8 Gb/s.
Fast Data Throughput
The Ubiquiti AirFiber60LR Kenya dish has a maximum throughput of 1.8 Gb/s at the 60 GHz radio band. It connects to your network via the built-in Gigabit Ethernet port and includes a 48V PoE adapter for power.
Made for the Outdoors
Made from aluminum and UV-stabilized plastic, the airFiber 60 LR can operate between -40 to 140°F and has ESD/EMP protection of about 24kV. A precision alignment pole mounting kit is included.
Checking Status
The Ubiquiti AirFiber60LR Kenya has easy-to-read LEDs indicate the dish’s power, Ethernet, signal, and GPS status.
Specifications
| Wireless | |
| Wireless Frequency Bands | 60 GHz |
| MU-MIMO Support | Yes |
| Throughput | 1800 Mb/s Total |
| Interface | |
| Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE |
| Security | |
| Wireless Security | WPA2-PSK |
| Hardware | |
| RAM | 256 MB |
| CPU | Cortex A7 Quad-Core |
| Electrical | |
| DC Input Power | 48 VDC at 0.65 A |
| Power Consumption | 18 W |
| Environmental | |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Operating Humidity | 5 to 95% |
| General | |
| Mount Options | Pole |
| Range | 1.24 Miles / 2 km |
| Dimensions | 16.3 x 16.3 x 14.2″ / 413 x 413 x 360 mm |
| Weight | 6 lb / 2.7 kg |
| Packaging Info | |
| Package Weight | 13 lb |
| Box Dimensions (LxWxH) | 17.9 x 17.6 x 7.4″ |
