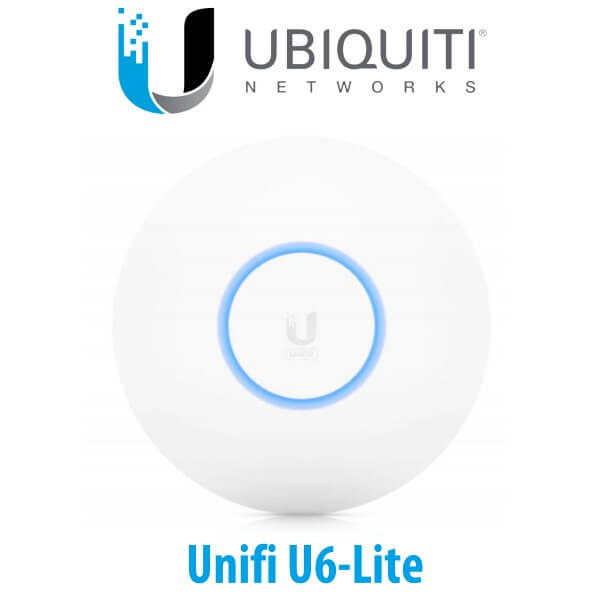

Ubiquiti Unifi U6 Lite Access Point Kenya

The Ubiquiti Unifi U6-Lite Kenya is a 2×2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. The Unifi U6-Lite can be mounted horizontally in the ceiling to cover a high-density environment, or mounted vertically on the wall to extend its range. Unifi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.

The Ubiquiti Wi-Fi Kenya is ceiling-mountable to broaden signal coverage and support device-dense networks also, it can be mounted to a wall to extend its signal in a specific direction. The compact U6 Lite also sports the same form factor as the Access Point nanoHD (UAP nanoHD) so you can repurpose its covers and recessed mounting bracket if you already own them. The U6 Lite simplifies the process of bringing Wi-Fi 6 to your home or office. Setting up Ubiquiti Wi-Fi Kenya fast and simple as it is fully managed with the Unifi Network web application or mobile app.

Features :

• High-efficiency 2×2 WiFi 6 (802.11ax)
• 5 GHz band (2×2 MU-MIMO and OFDMA) with 1.2 Gbps throughput rate
• 4 GHz band (2×2 MIMO) with 300 Mbps throughput rate
• Powered by 802.3af PoE (PoE injector sold separately)
• Fits UAP nanoHD covers and the recessed mounting bracket

Less interference with OFDMA

With OFDMA, Ubiquiti Wi-Fi Kenya not only deliver higher-volume data packets, but tactically parse and deliver data to multiple devices simultaneously, drastically improving their upload and download speeds.

Two-stream, high-efficiency Wi-Fi 6 technology

Ubiquiti Unifi U6-Lite Kenya deliver an aggregate radio rate of up to 1.5 Gbps with 5 GHz (2×2 MU-MIMO and OFDMA) and 2.4 GHz 2×2 MIMO radios.

Powerful, wider wireless coverage

The U6-Lite access point utilizes Wi-Fi 6 technology to provide strong and expansive wireless coverage to all enterprise networking environments.

Simultaneously connect to more devices

Ubiquiti Unifi U6-Lite Kenya create and support over 300 distinct client connections.

Expand your Network Coverage

The Ubiquiti Wi-Fi Kenya seamlessly integrates with the Unifi Network Application and simplifies network bridging. Host, configure, and monitor all of your network devices from a central mobile interface.

Specifications

Mechanical

• Dimensions : Ø160 x 32.65 mm (Ø6.3 x 1.3″)
• Weight :
  – Without Mount : 300 g (10.6 oz)
  – With Mount : 315 g (11.1 oz)
• Enclosure Characteristics : Polycarbonate 110 and ADC12 Die Casting
• Mounting Characteristics : Polycarbonate, SGCC Steel

Hardware

• Processor Specs : 880 MHz MIPS 1004 KEc
• Memory Information : 256 MB
• Management Interface : Ethernet In-Band

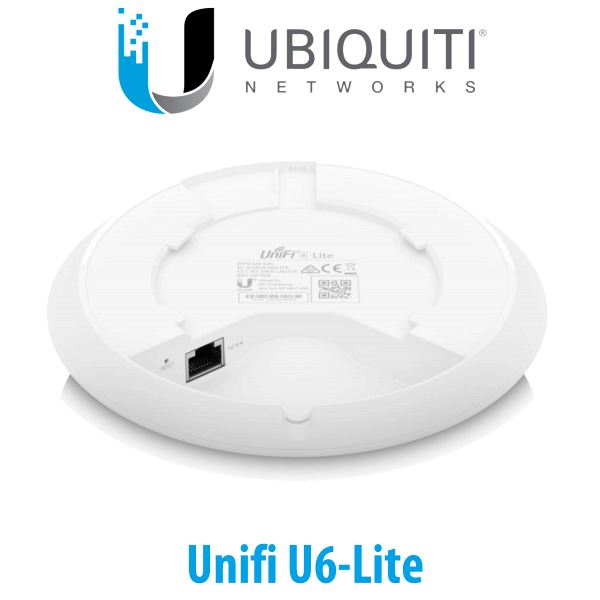

• Networking Interface : (1) 10/100/1000 Mbps Ethernet RJ45
• Buttons : Factory Reset
• LEDs : White/Blue
• Power Method : 802.3af PoE, Passive PoE (48V)
• Power Supply : 802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
• Supported Voltage Range : 44 to 57VDC
• Max. Power Consumption : 12W
• Max. TX Power
  – 2.4GHz : 23 dBm
  – 5GHz : 23 dBm
• MIMO :
  – 2.4GHz : 2 x 2
  – 5GHz : 2 x 2
• Throughput Speeds
  – 2.4GHz : 300 Mbps
  – 5GHz : 1201 Mbps
• Antenna Gain
  – 2.4GHz : 2.8 dBi
  – 5GHz : 3 dBi
• Operating Temperature : -30 to 60° C (-22 to 140° F)
• Operating Humidity : 5 – 95% Noncondensing
• Certifications : CE, FCC, IC

Software

• WiFi Standards
  – 802.11a/b/g
  – WiFi 4/Wi-Fi 5/Wi-Fi 6
• Wireless Security : WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• BSSID 8 per Radio
• VLAN : 802.1Q
• Advanced : QoS Per-User Rate Limiting
• Guest Trafc Isolation : Supported
• Concurrent Clients : 300+

Supported Data Rates (MBPS)

• 802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (Wi-Fi 4) : 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
• 802.11b : 1, 2, 5.5, 11 Mbps
• 802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11ac : (Wi-Fi 5): 6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80)
• 802.11ax : (Wi-Fi 6) 6.3 Mbps to 1.2 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80)
