Description

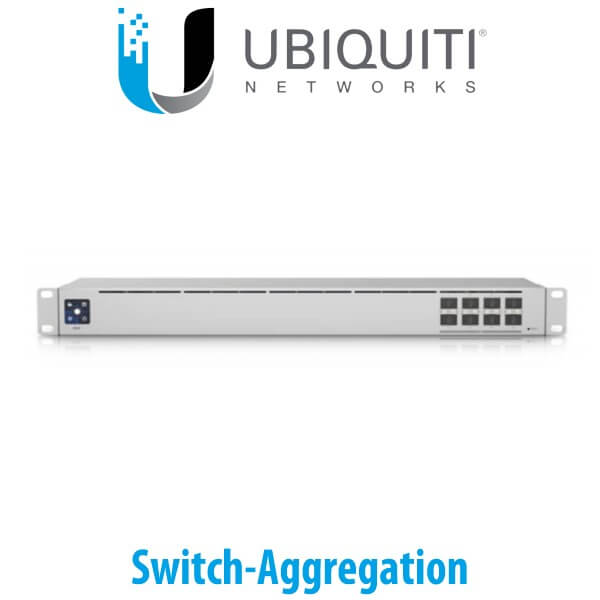

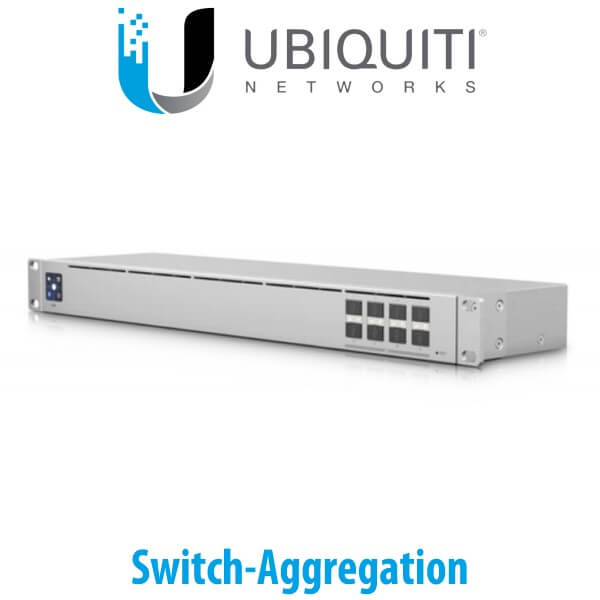

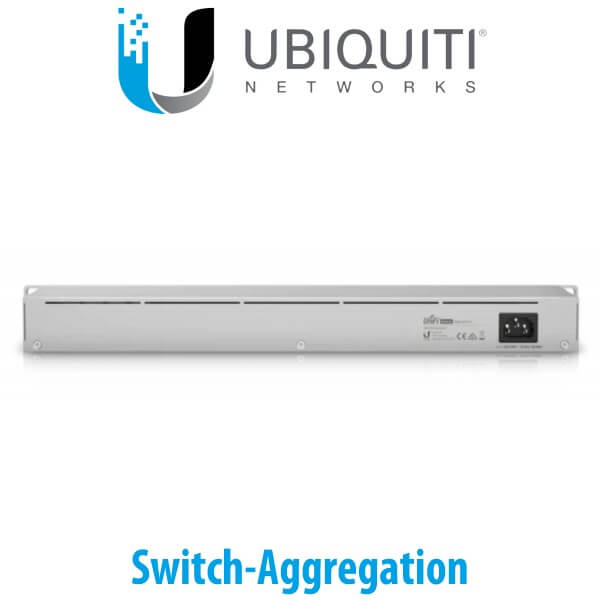

The Ubiquiti UniFi Aggregation Switch Kenya
The Ubiquiti USW-Aggregation Kenya is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7″ depth and fan-less design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The Switch Aggregation is designed to enhance your network’s switching capacity and performance by creating high-bandwidth aggregation links. This rack-mountable switch also offers 160 Gbps switching capacity and features a 1.3″ LCM color touchscreen that concisely displays key system and connection insights. Additionally, with its 4.7″ depth, it’s easy to mount this compact, fan-less switch in a SOHO rack cabinet. Ubiquiti USW-Aggregation Kenya can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
Features
- 8 x 10G SFP+ Ports
- 160 Gb/s Switching Capacity
- 04 Mpps Forwarding Rate
- Rack-Mountable Design
- Supports High-Bandwidth Links
- 3″ Touchscreen
- Augmented Reality Switch Management
- Supports UniFi Network Controller
UniFi Network Controller Benefits:
- Single interface network management
- Intuitive and comprehensive device configuration, control, and monitoring
- Remote firmware upgrading
- Manage network users and guests
- Personalize the design, architecture, and privacy of guest hotspots
1.3″ Touchscreen
Ubiquiti USW-Aggregation Kenya boasts of 1.3″ LCM color touchscreen that concisely displays key system and connection insights.
Single interface network management
Ubiquiti USW-Aggregation Kenya can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app
UniFi Network Controller
Using the UniFi Network Controller computer interface and mobile app allows you to configure, control, and monitor your network devices from almost anywhere. Features include remote firmware upgrades, setup of users, and configuration of guest portals.
Specifications
Interfaces | |
Ports | 8 x 10Gb SFP+ |
Protocols | |
Layer Services Supported | Layer 2 Support |
Supported Protocols | Link Aggregation |
Performance | |
Forwarding Rate | 119.04 Mpps |
Switching Bandwidth |
|
Electrical | |
Power Draw | 30.00 W (Max) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Supply Type | Internal |
Environmental | |
Operating Temperature | 23 to 104°F / -5 to 40°C |
Operating Humidity | 10 to 90% |
General | |
Cooling System | Passive |
Material of Construction | Steel |
Rack Form Factor | 1 RU |
Dimensions | 17.4 x 4.7 x 1.7″ / 442.4 x 120 x 43.7Â mm |
Weight | 5.84Â lb / 2.65Â kg |
Packaging Info | |
Package Weight | 7.43 lb |
Box Dimensions (LxWxH) | 20.3 x 9.4 x 4.9″ |
