Description
Ubiquiti USW-Pro24PoE Switch Kenya

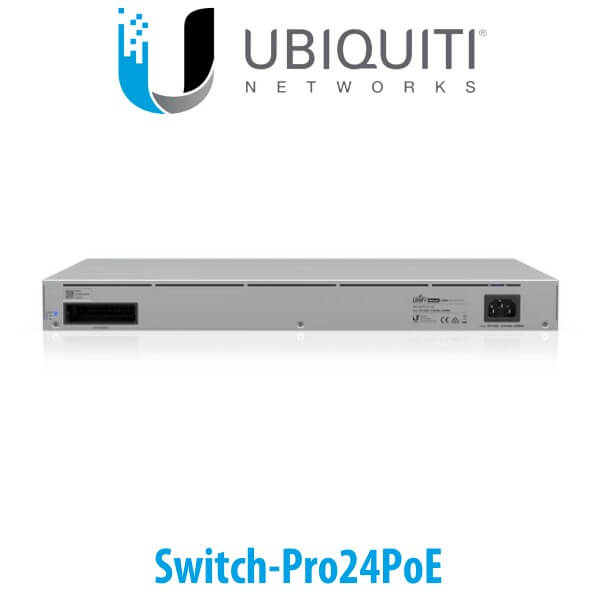

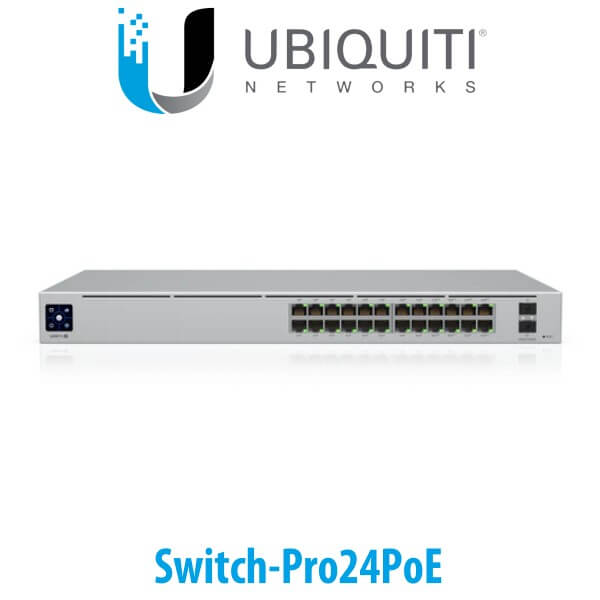

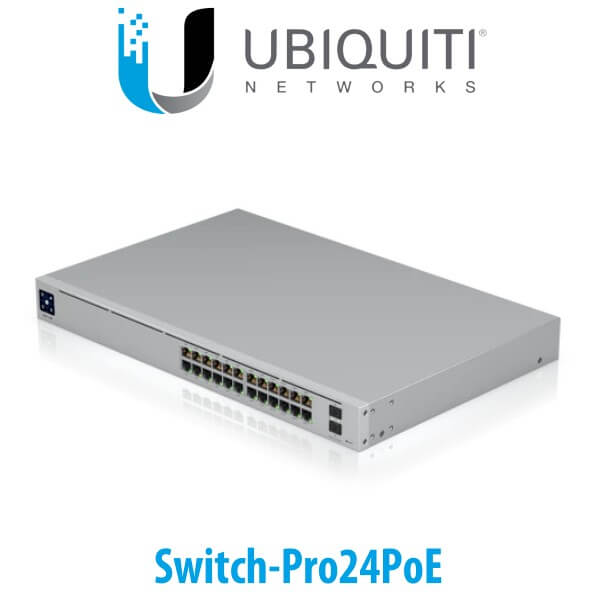

The Ubiquiti USW-Pro24PoE Kenya is fully manageable second-generation UniFi Pro PoE 24-Port Gigabit Managed PoE Network Switch with SFP+ from Ubiquiti. Designed with Layer 3 protocol support, the passively cooled 24-port Gigabit switch features a total power budget of 400W across 16 32W PoE connectors and eight 64W PoE++ ports for power-intensive devices such as high-resolution network security cameras. Each port delivers 44 Gb/s non-blocking throughput with 88 Gb/s switching capacity and a 65.47 Mpps forwarding rate. Two 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices. Administrators may monitor and manage the switch with the 1.3″ touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.
Features
Powerful hardware and software
Ubiquiti USW-Pro24PoE Kenya offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. (*Layer 3 switching will be available in a future software release
UniFi SmartPower RPS, USP-RPS, is Ubiquiti’s PSU failover system.
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.
Touch screen display
The 1.3″ touchscreen display allows easy monitoring and quick troubleshooting.
Near silent cooling
Ubiquiti’s new airflow design reduces the need for fan usage.
Switching Performance
The second-generation UniFi switch offers a 65.47 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Pro Switch has a non-blocking throughput of 44 Gb/s with 88 Gb/s switching capacity.
Layer 3
The Ubiquiti USW-Pro24PoE boasts of Layer 3 protocol capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.
SFP+ Fiber Connectivity
Connect high-speed network storage or set up a long-distance uplink using the 10 Gb/s SFP+ ports.
Redundant Power
The Ubiquiti USW-Pro24PoE supports has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails.
UniFi Controller Network Management
The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.
Multi-Site Management
You may use a single instance of the UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites. Each site is logically separated with its own network monitoring, configuration, maps, statistics, and administrator accounts.
Switch Configuration
Access and configure any managed UniFi Switch using the UniFi Controller. Its features include:
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 1X control and RADIUS VLAN
- Debug terminal option for command-line interface
Switch Port Status
View the status information for each port, including:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
Detailed Analytics
Ubiquiti’s Deep Packet Inspection (DPI) engine tracks which applications and IP addresses are using the most bandwidth. Additionally, the UniFi Network Controller provides configurable reporting and analytics to efficiently manage user populations and speed up troubleshooting.
Specifications
Interfaces | |
Ports |
|
Protocols | |
Layer Services Supported | Layer 2 Support, Layer 3 Support |
Supported Protocols |
|
Transmission Method | Store-and-Forward |
Standards | |
Supported IEEE Standards | 802.3af, 802.3at, 802.3bt |
Performance | |
Forwarding Rate | 65.47 Mpps |
Switching Bandwidth | 44 Gb/s (Non-Blocking) |
Computer | |
OS Compatibility |
|
Electrical | |
Power Draw | 50.00 W (Max) |
DC Input Power | 11.5 to 52 VDC at 7.69 A |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
PoE Power Budget | 400 W |
PoE per Port | 32 to 64 W |
Power Supply Type | Internal |
Environmental | |
Operating Temperature | 23 to 104°F / -5 to 40°C |
Operating Humidity | 10 to 90% |
Certifications | CE, FCC, IC, as per Manufacturer |
General | |
Cooling System | Passive |
Indicator Lights | Link/Activity, Link/Activity/Speed, PoE, System |
Rack Form Factor | 1 RU |
Dimensions | 17.42 x 11.24 x 1.72″ / 442.4 x 285.4 x 43.7Â mm |
Weight | 9.48Â lb / 4.3Â kg |
Packaging Info | |
Package Weight | 12.69 lb |
Box Dimensions (LxWxH) | 20.5 x 15.8 x 4.9″ |
