Description

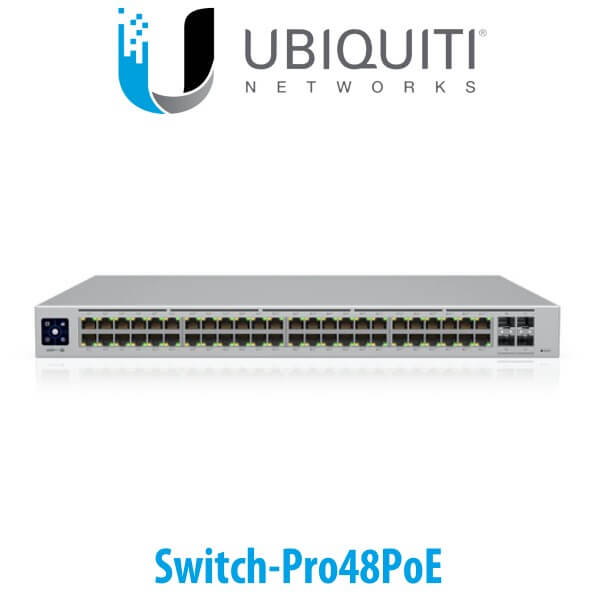

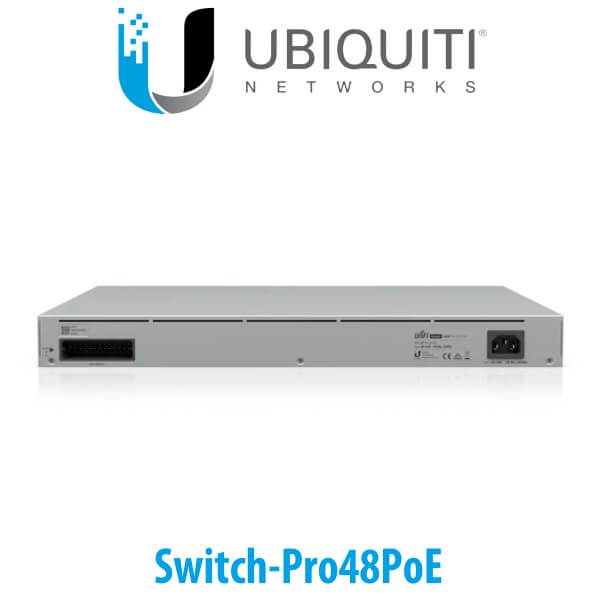

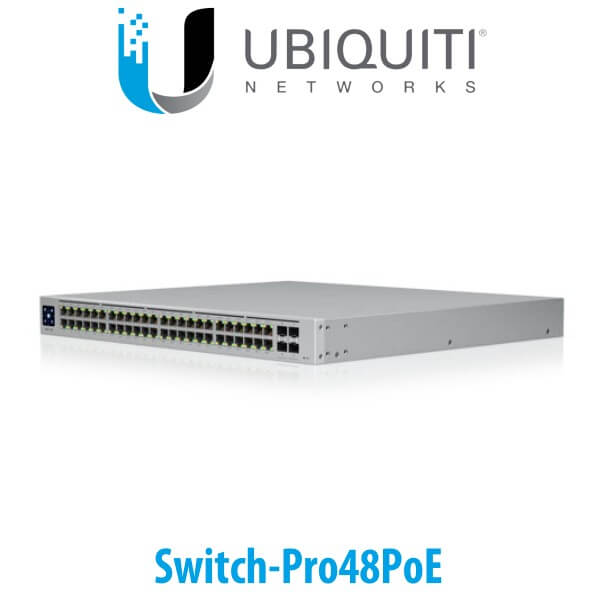

Ubiquiti USW Pro48PoE Switch Kenya

The Ubiquiti USW-Pro48PoE Kenya features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 is an ideal aggregation and access layer switch for any UniFi solution – it combines innovative near-silent cooling with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere. Administrators may monitor and manage the switch with the 1.3″ touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Ubiquiti USW-Pro48PoE Kenya is a fully manageable second-generation UniFi Pro PoE 48-Port Gigabit Managed PoE Network Switch with SFP+ from Ubiquiti. The USW Pro 48 PoE combines a rich set of Layer 2 features with advanced Layer 3 tools including inter-VLAN routing, static routing, and a DHCP server. Designed with Layer 3 protocol support, the passively cooled 48-port Gigabit switch features a total power budget of 600W of PoE power with SmartPower RPS (USP RPS) power redundancy. Each port delivers 88 Gb/s non-blocking throughput with a 176 Gb/s switching capacity and a 130.94 Mpps forwarding rate. Four 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices.

Features

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device insights and deep configuration options
• Upgrade device firmware remotely
• Manage network users and guests with ease
• Personalize the design, architecture, and privacy of guest hotspots
• Set up devices quickly and manage them on the go with a powerful mobile app

Layer 3 Features

In addition to Layer 2 switching protocols and features, the Ubiquiti USW-Pro48PoE Kenya offers Layer 3 capabilities1, such as inter‑VLAN routing, static routing, and DHCP server functionality

Near-Silent Cooling

The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.

Fiber Connectivity

SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

802.3bt PoE++

Ubiquiti USW-Pro48PoE Kenya support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high‑power PoE devices. Remaining ports offer 802.3af/at PoE.

Power Supply Redundancy

The Ubiquiti USW-Pro48PoE Kenya supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup

Innovative Display

The Ubiquiti USW-Pro48PoE Kenya is equipped with 1.3″ touchscreen displays status information for easy monitoring and quick troubleshooting.

Scalable UniFi Network Controller Management Capabilities

The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview

From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network’s vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection

Ubiquiti’s proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics

The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management

A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi‑tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration

Access and configure any managed UniFi Switch using the UniFi Controller. Its features include:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status

View the status information for each port, including:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting
