Description

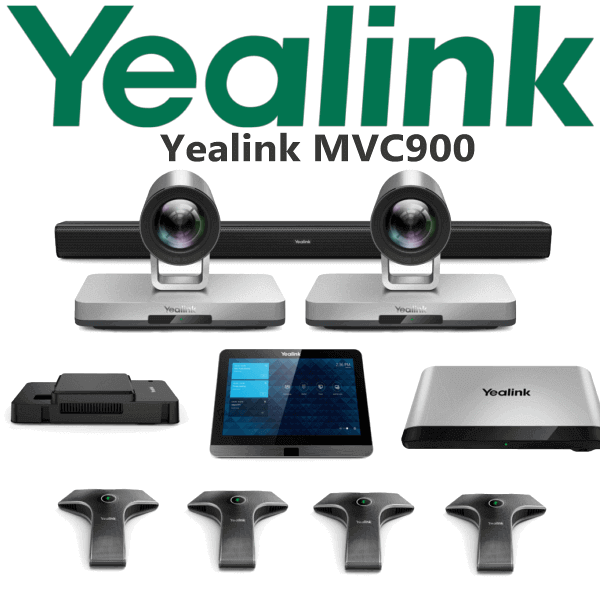

Yealink MVC900 II Microsoft Teams Video Conferencing System Kenya

The Yealink MVC900 II is a Microsoft Teams Room system for video conferencing in extra-large meeting rooms. It comes as a bundle inclusive of MTouch II, MCore mini-PC, two UVC80 USB Pan-Tilt-Zoom Cameras and a Camera Hub, giving users an all-inclusive solution of multi-camera interaction, collaboration, and connecting with remote users. With a 12x optical zoom, the Yealink UVC80 covers every angle of the conference hall, including the farthest. Boasting of a VCM34 microphone that captures audio from a radius of 20 feet (6 meters), everyone’s voice is heard with utmost clarity.

The supplied high performance mini-PC offers practicality and ease of integration and cable management for seamless and reliable deployment. This Mini-PC box declutters the user’s workstation as it can be mounted on the wall, set on the table, or placed on a TV cart. The MVC900 II has a tailor-made interface for Microsoft Teams that is user-friendly as easy to operate, saving you time at the start of meetings and conferences.

Yealink UVC80 is a PTZ camera for professional video conferencing in the office. It takes highly detailed 1080p Full HD video with full PTZ functionality: 200° panning range, 60° tilting range, and an amazing 12x optical zoom.UVC80 is a 1080p camera with wide-angle lens for detailed HD video. It is a full pan-tilt-zoom (PTZ) camera: 200° pan, 60° tilt, and 12x optical zoom. Having two UVC80 cameras means the large conference space will be fully covered. VCM34 is a 360° microphone with voice pickup out to 20′. Having four VCM34 microphones means everyone’s voice will be heard. MTouch is a 8″ touchscreen controller that shows the familiar Microsoft Teams interface to reduce friction and make the conference calls simple to manage. MSpeaker is a 40W soundbar that means everyone will clearly hear the conversation. MShare and camera-hub network the devices together to simplify the installation process. The included mini-PC has Microsoft Teams Rooms preinstalled, which means the system is ready for video conferencing out of the box.

Yealink Vc900 Teams Nairobi Kenya

Yealink VCM34 is a compact microphone array with 360° voice pickup for a range of up to 20 ft. With four VCM34s you get audio coverage for even very large conferences.

Yealink MTouch provides a dedicated console for managing the conference. MTouch is an 8-inch capacitive touchscreen tablet that displays the familiar Microsoft Teams interface, giving you a seamless conferencing experience.

Yealink MSpeaker is a powerful speaker bar that projects audio loud enough for everyone to hear. It features a four 10W speaker array.

Yealink MShare is a combination of hub and Wi-Fi access point for the Yealink wireless presentation device (not included). In addition, the package has a separate camera hub that supports up to 9 connected cameras.

Yealink includes an ultra-compact mini-PC with Intel Core i5 processor and SSD to act as a powerful, fast control center for the video conference. The Windows PC comes with Microsoft Teams Rooms preinstalled. It connects to the network via either Wi-Fi or Ethernet.

Yealink Mvc900 Teams Kenya

Yealink MVC Series is the brand-new video conferencing system released by Yealink that revolutionizes the Microsoft Teams Rooms meeting experience. Perfectly integrated with Microsoft Teams Rooms and Yealink cutting-edge audio & video solutions, the Yealink MVC Series is deemed to cover all the usage scenarios and provide you with the excellent meeting experience in the conference room. Consisting of the touch console, content sharing unit, audio and video peripherals, and mini-PC, the Yealink MVC Series enhances the whole meeting experience with the familiar Microsoft Teams Rooms interface and a close-to-zero learning curve, allowing you just to simply walk into the conference room and start your meeting with one-touch join, or type a few names and launch an ad hoc call. The Yealink MVC900 includes four 360 ° pick-up-range microphones, a camera hub and two powerful pan-tilt-zoom cameras with 12x optical zoom, to cover up an extra-large conference room.

Yealink MVC900 Teams Video Conferencing System Features :

Flexible Camera Layout for Extra-large Conferencing Halls :

The Yealink MVC900 II boasts two UVC80 12x Optical PTZ Cameras and a Camera Hub to create a layout that can serve multiple cameras used in extra large meeting halls. Users enjoy unlimited flexibility to change the camera layouts as per their preference. The UVC80 camera records 1080p at 60 frames per second, with a 12x optical zoom for super video clarity.

Simplified MTR Deployment :

The Yealink MVC900 II has been designed for easy deployment and extension in large rooms, courtesy of a VCH Port and MCore cable management system. With a converged data transmission and power supply cable into a single CAT5e cable, ensuring wired connectivity is stable and reliable. This makes it possible to connect the TV and the Conference areas through one cable, making it a straightforward and time-saving approach to deployment. The same CAT5e is used for power supply, cutting out the hassle and untidiness that sometimes occurs due to many cables at a workspace.

Microsoft Teams-tailored User Interface :

Users enjoy a one-touch meeting join courtesy of the Native Microsoft Teams-tailored user interface. The Yealink MVC900 is built around the concept of multi-function all-in-one, achieved through the MTouch II touch panel that is used for call management, camera control, and content sharing among other operations. Also built into the MTouch Ⅱ is a Human Motion Sensor for automatic waking up the system when the conference is about to start.

Share both Wired and Wireless Content Easily :

Once the Yealink WPP20 is plugged in, one click is all a user does and content is shared wirelessly. There is also the option of connect to a laptop via USB-C or HDMI therefore flexibility in content sharing. With effective team meetings, you can enjoy talking freely and exchanging creative ideas.

Easy to Start and Manage Meetings :

Its familiar Microsoft Teams Rooms interface and functionality not only makes it easy for everyone but also saving your time to join the meeting faster. The Yealink Plug-in software lets you get rid of the remote control, you can control the USB PTZ camera on the touch console directly via it software. To provide an optimal solution for extra-large meeting rooms, Yealink camera hub handles all the video streams from UVC80s, users can freely switch one to another via Yealink Camera Control Plug-in.

Premium Audio and Video Meetings :

ExperienceUVC80 camera supports 1080P/60FPS video calls to make your business discussion be as life-like and interactive as possible. For its premium voice quality, the solution is combined with the Yealink audio algorithm and is equipped with four microphones that supports 20ft/360° voice pickup range and a speaker that is capable of producing louder output up to 40W. Besides, Yealink Noise Proof technology effectively eliminates background distractions and noises, guaranteeing a crystal-clear voice even in a noisy environment.

Flexible and Simple :

This solution provides you with an individual touch console that separates from the mini-PC, not only making the deployment more flexible but also rewarding you a tidy and smart conference table.

Simple Management through Yealink Device Management Platform

This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update and diagnose all Yealink audio and video peripherals on this platform remotely.

Yealink MVC900 Teams Video Conferencing System Specifications :

Preload :

• Windows 10 IoT Enterprise X64
• Windows 10 IoT Enterprise License
• Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
• Yealink Room Connect

M-Core Mini – PC :

• 8th-gen Intel® QUAD-CORE i5
• Memory: 8GB (2 x 4GB)
• Storage: 128GB SSD
• 2 x HDMI video output with CEC supported
• Bluetooth and Wi-Fi
• 1x Yealink VCH port, connect to MTouch II
• 4 x USB 3.0 Type-A
• 1 x 10/100/1000M Ethernet port
• 1 x Power port
• 1 x Security lock slot
• Built-in cable management

MTouch II touch panel :

• 8-inch IPS screen
• 1280 x 800 resolution
• 10-point capacitive touch screen
• 3.5mm headset jack
• Human Motion Sensor
• Angle adjustable bracket (28° ~ 50°)
• 1080P/30FPS FHD for sharing
• Support wired and wireless content sharing
• Built-in Wi-Fi AP for Yealink wireless presentation device
• HDMI/USB-C video input

Camera Hub :

• Support up to 9 cameras
• Support camera layout
• 1 x RCA-in
• 1 x RCA-out
• 1 x Yealink Microphone port (RJ-45)
• 3 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
• 1 x Ethernet port for camera connection

UVC50 USB PTZ Camera :

• 1920 x 1080 video resolution
• 60 frame-rate
• 5x optical zoom
• Field of view (diagonal): 78.5°
• Auto-framing
• Camera presets
• Pan range: 200°
• Tilt range: 60°
• 1 x Line-in (3.5mm)
• 1 x Line-out (3.5mm)
• 1 x Yealink Microphone port (RJ-45)
• 1 x USB 2.0 Type-B
• 1 x USB 2.0 Type-A
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot

Package Features :

• N.W/CTN: 9Kg
• G.W/CTN: 11Kg
• Carton Measurements: 600mm x 545mm x 285mm

Package Contents

• MCore Mini-PC
• MTouch II touch panel
• 2 x UVC80 USB PTZ camera
• Camera Hub
• WPP20 wireless presentation pod (optional)
