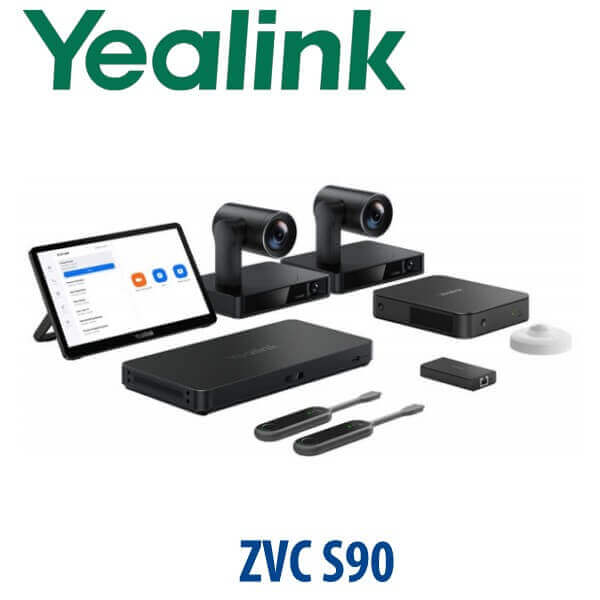

Yealink ZVC S90 Zoom Rooms Kit Kenya

The Yealink ZVC S90 Kenya is designed for large conference spaces, featuring the MINI-PC M Core Pro, M Touch Plus touch panel, UVC86 4K PTZ camera, and AVHub for audio-video processing. AVHub enables customizable screen arrangements and supports Yealink’s multicamera solution, connecting up to 9 cameras for speaker tracking. With two UVC86 cameras offering 12x optical zoom and smart tracking, the Yealink ZVC S90 Kenya enhances conferencing. Yealink Room Connect via MTouch Plus panel allows users to manage cameras, adjust layouts, and integrate seamlessly with ZVC-BYOD-Extender for audio-video equipment fusion. Networking multiple ZVC S90 units creates a versatile conference room system.

Features

Multi-cam solution, Flexible layout : Yealink leverages the AVHub audio and video processor to establish a versatile multi-camera setup supporting up to 9 Yealink cameras. Through the use of network cables, multiple ZVC S90 series kits can be interconnected to create a conference room system with flexible merging and splitting capabilities.

Big and flexible conference control experience : At the forefront of Yealink’s third-generation devices, the Yealink MTouch Plus features an 11.6-inch slim-frame touch screen, offering adaptable deployment options to suit various conference room layouts and streamline conference management tasks effectively.

Intelligent tracking, Free your hands : The Yealink UVC86 camera boasts advanced tracking functionalities including Auto-framing, Speaker Tracking, and Presenter Tracking. With Speaker Tracking, it automatically adjusts framing based on the speaker’s position, supported by region trigger functionality, eliminating the need for manual adjustments. Gesture control further enhances user convenience, enabling seamless toggling of ON/OFF states in diverse settings. The camera’s 4K video output and 12x optical zoom lens deliver crisp, high-quality images, facilitating a smooth face-to-face communication experience.

Flexible audio, Flexible connectivity : Users have the flexibility to choose between wired (VCM35, VCM38 Ceiling microphone) or wireless (VCM36-W, CPW65) microphones for audio capture, accommodating different conference room setups, whether desktop or ceiling-mounted. Yealink’s proprietary sound processing algorithm actively mitigates reverberation and background noise, ensuring clear voice transmission and minimizing interruptions. Collaboration with third-party companies such as Biamp, Nureva, Shure, and YAMAHA enables seamless integration with their devices, enhancing the versatility of the S90 conference system.

Simple to deploy, Easy to use : Designed for video meeting rooms, Yealink audio and video systems feature VCH and USB ports for convenient expansion. The Yealink MCore Pro offers efficient cable management, facilitating secure wire connections and streamlined deployment based on the meeting room’s layout. Utilizing a single CAT5e cable, the TV area can connect to the conference table area for seamless data transmission and power supply, eliminating the need for additional cables or power sources. This simplified approach reduces deployment costs significantly.

Manage your devices remotely : The solution enables remote management, monitoring, configuration, updating, and diagnosis of all Yealink audio and video device peripherals through the Yealink Device Management Platform/Cloud Service, ensuring efficient operation and maintenance.

Specifications

• Package Content
  • MCore Pro, Gen-3 Mini-PC
  • MTouch Plus, Gen-3 touch panel
  • AVHub, audio and video processor
  • 2 x UVC86 USB PTZ camera
  • 2 x WPP30 wireless presentation pod
  • Room Sensor, meeting room sensor
• Preload
  • Windows 10 IoT Enterprise X64 / Windows 11* IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Zoom Rooms App
  • Yealink Room Connect

• MCore Pro, Gen-3 Mini-PC
  • 11th Gen Intel® Core i5
  • Memory : 8 GB (2 x 4GB)
  • Storage : 128 GB SSD
  • 3x HDMI video output with CEC supported
  • 0
  • Kernel DMA
  • EDID
  • Wi-Fi : IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth : BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / Mtouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management
• MTouch Plus
  • 6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support third-party screen sharing*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
• Room Sensor
  • Detection angle : 120°
  • Adjustable detection angle : ±20°
  • Operating temperature : 0-40℃
  • Operating humidity : 10-95%
  • Power : Battery powered, 4-year life
• AVHub, audio and video processor
  • 2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port (RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking
  • Support wireless BYOD*
• UVC86 USB PTZ Camera
  • 4K Sensor
  • 4 × HD zoom (12x optical, 1.7x digital)
  • Angle of view :
    • -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens)
    • -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
  • Auto-framing
  • Speaker tracking
  • Presenter tracking, support area trigger and gesture control
  • Multi-focus
  • Picture-in-picture
  • Up to 9 preset positions can be set
  • Horizontal rotation : 200°
  • Vertical rotation : 130°
  • 1 x HDMI output
  • 1 x Yealink microphone port (RJ-45)
  • 1 x USB 3.0 Type-B port
  • 1 x USB 2.0 Type-A Port
  • 1 x Power Port
  • 1 x Security Lock
  • 1 x Reset Hole
• Package Features
  • W/CTN : 12.1 kg
  • W/CTN : 13.8 kg
  • Carton Meas : 935 mm x 413 mm x 312 mm
