Description

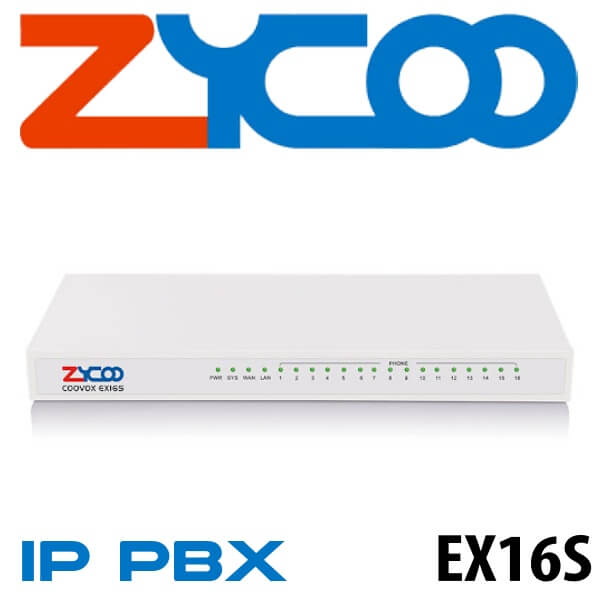

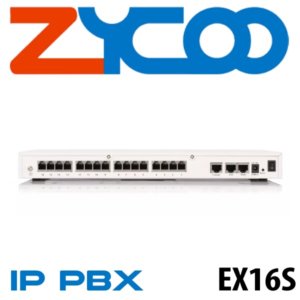

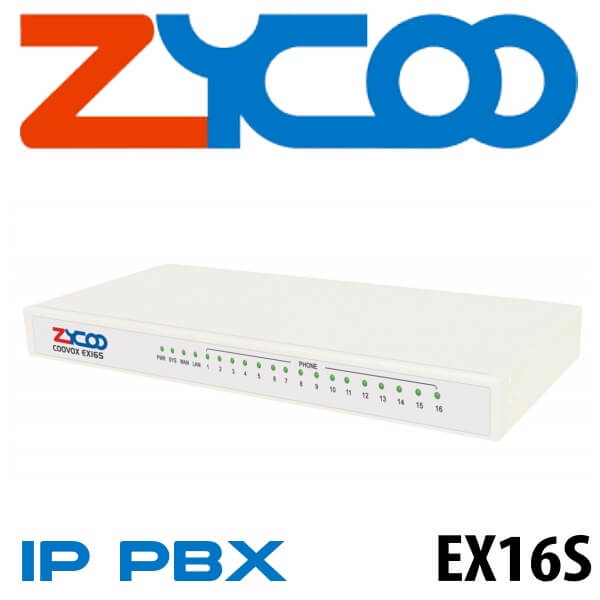

Zycoo CooVox EX16S FXS Kenya

Zycoo CooVox EX16S 16 Port FXS Gateway is ideal for those enterprises which have heavy telephone traffic. With innovative modular design and enhanced hardware platform, it brings you excellent unified communication experience with innovative VoIP function. EX16S Gateway has been designed specifically for plug and play integration with the whole CooVox Version 2 Series IPPBX systems so that attached analogue phones inherit almost all innovative VoIP call features from the CooVox V2 series IPPBX system. Between 1 and 31 EX16S Gateways can be deployed simultaneously (varies dependent on which CooVox model deployed).

The CooVox-EX16S has a 16 FXS port expansion box which is currently designed dedicatedly working with CooVox V2 series IP PBX. The EX16S helps connect analog phones and fax machines to your CooVox V2 IP PBX through LAN. ZYCOO IP telephony system offers an easier, more reliable and cost-effective solution for SMEs. With Zero-touch Installation and modular design, it’s simpler and more flexible to install, manage and maintain.

The EX16S by ZYCOO is 16 port FXS Gateway designed for plug and play integration with all ZYCOO CooVox V2 series systems and is an ideal solutions for organizations wishing to move to a SIP based IPPBX system without the expense and effort required to replace existing phones, wiring and without disrupting day to day business activities

Key Features

Simple to setup
- The CooVox-EX16S is easy to install with just Plug and Play with no configuration needed. EX16S is designed to fully integrate with your CooVox Version 2 system and from version 2.1.6 firmware. Simply auto-scan your network for EX16S Gateways and choose the extensions to use, all from your CooVox GUI
Powerful Hardware platform
- EX16S comes equipped with powerful 1GHz dual-core A7 processor and 512MB DDR3 SDRAM to ensure superior performance without disappointing its users. It offers robust and reliable 1GHz A7 processor on board guarantees superior user experience.
Scalable solution
- EX16S allows between one and thirty one EX16S gateways can be deployed which means a maximum of 496 Analogue phones can be connected without limitation. Each EX16S connects to CooVox V2 system through your LAN, you can expand FXS ports by deploying several EX16S boxes in your LAN till fulfill all analog phones and Fax machines you have.
Integration
- EX16S is designed only to work with COOVOX V2 systems. Attached analogue phones will inherit almost all CooVox extensions properties and certain settings from direct from the CooVox system including tone zone, time zone, feature codes and system voice prompts
Auto-provisioning
- Provisioning by ZYCOO CooVox V2 series IPPBX, zero-config on the box. Feature rich and ease of use: Inherits nearly all innovative VoIP call features from the CooVox V2 series IPPBX system.

Advantages

- Friendly to deploy, nearly plug-and-play like PABX system does, very Entry-level IT background required;
- Saves time and investment from deploying analog phones and fax machines rather than using 3rd party FXS gateways;
- The best TCO comparing with using FXS gateway; Inherits almost all meaning that you are well equipped with any FXS on your disposal
- Equipped with innovative VoIP call features from the CooVox V2 IP PBX

Technical Specifications

General

- - Processor 1GHz dual-core A7 processor
  - Memory 512MB DDR3 SDRAM
  - Storage 8GB SD card
  - Lines 16 x RJ11 FXS
  - Network 2 x 10/100Mbps
  - Signaling SIP(RFC3261)
  - Audio Codecs G.722/G.711-Ulaw/G.711-Alaw/G.726/G.729/GSM/SPEEX
  - Dimension 280 x 150 x 65mm
  - Mounting Desktop and rack-mountable
  - Power DC 12V/3.5A
  - Compatible ZYCOO IP-PBX’s CooVox-U20V2, CooVox-U50V2, CooVox-U60V2, CooVox-U80, CooVox-U100V2
  - Environmental
  - - Working Temperature: 0 ~ 40°C
    - Storage Temperature: -20 ~ 55°C
    - Humidity: 5 ~ 95% Non-condensing
