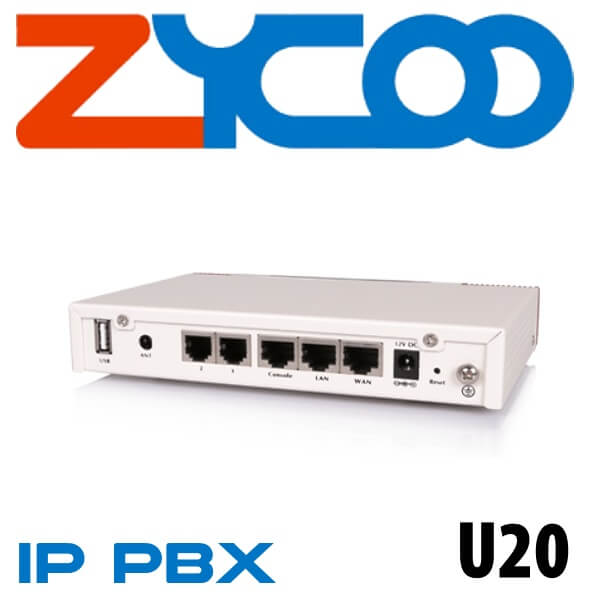

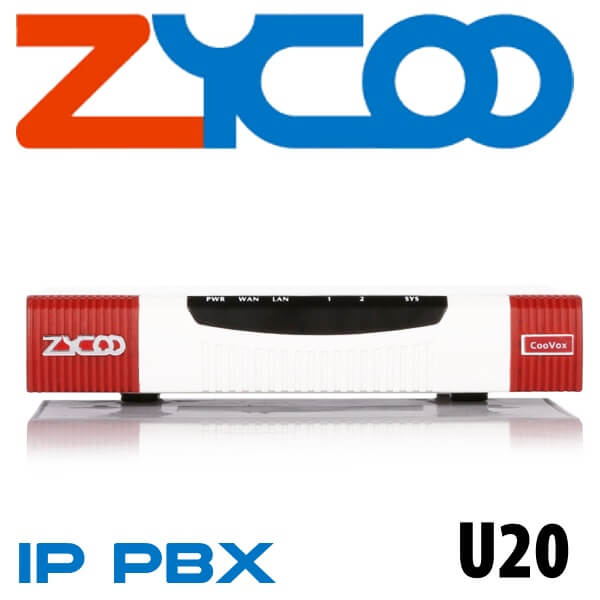

Zycoo CooVox U20 IP PBX Kenya
The Zycoo CooVox U20 IP PBX With 2FXO and 1 GSM is the second generation of Mini IP Phone System optimized for modern business telecommunication needs. It’s the first Mobile IP Phone System with the ability to use the GSM module to connect to the mobile network for mobile telephony. ZYCOO CooVox U20 is more than VOIP IP PBX equipped with everything you need to upgrade or set up a new IP Telecommunication system, as desktop IP-Phone, smart mobile app and analog expansion box are also available.
Zycoo CooVox U20 IP PBX integrate with various kinds of our independent R&D or third-party apps and systems, like hotel PMS, proxy server, conference and billing system to fit various application you may need. CooVox U20 is equipped with EX16S assorted terminals that allow you to use your existing analog phone as an IP-PBX extension with affordable cost. Also expansion of its 16 FXS ports for connection with analog phones or Fax machines is possible. CooVox U20 boasts of a unique modular design, that provide flexible telephony interfaces combination while allowing for future scalability. Besides the built-in rich SIP capabilities, also allow you to decide what types of extensions and physical trunks you need in your telephone system.
PBX Key Features
- Fax to Email
- 2 FXO, Optional 1 GSM Module
- WebRTC/ Web Dial
- Paging and Intercom function strengthens the working efficiency
- Monitor and Whisper
- HD Voice Codec G.722 for perfect voice quality
- Strong security features protect your system from hacking
Call Features
- Call Back
- Call Forward
- Call Hold
- Call Paging and Intercom
- Call Park
- Call Pickup
- Call Queue
- Call Recording
- Call Routing
- Blind Transfer
- Attendant Transfer
- Call Waiting
- One Number Stations
- Caller ID
- Dial by Name
- Music On Hold/Transfer
- 3-Way Conference
- Video Call
PBX Features
- Black List
- BLF (Busy Lamp Field)
- CDR (Call Detailed Record)
- Conference Room (20 Rooms)
- Call Monitoring
- DID (Direct Inward Dialing Number)
- DISA (Direct Inward System Access)
- Distinctive Ringtone
- DND (Do Not Disturb)
- DNIS (Dialed Number Identification Service)
- Feature Codes
- FOP (Flash Operation Panel) Status Monitoring
- Follow Me
- IVR (Interactive Voice Responses)
- Mobility Extension
- Multi-Language Prompts
- Multi-Language GUI
- One Touch Recording
- Phone Book(LDAP Server)
- Phone Provisioning
- Pin Set
- Record File Download
- Ring group
- SIP Register with UDP/TCP/TLS
- SIP Trunk
- Skype for SIP
- Smart DID
- Speed Dial
- Spy
- SRTP (Secure Realtime Transport Protocol)
- T.38 Fax (Pass-through)
- Time Based Rule
- WebRTC
- Voicemail & Voicemail to Email
System Capacities
- Up to 15 Concurrent Calls
- Up to 20 Conferences
- Up to 30 IP Phone Registers/Extensions
- Recording: 36,000 mins (.gsm); 4,000 mins (.wav)
- Voicemail: 36,000 mins (.gsm); 4,000 mins (.wav)
Codecs and Protocols
- Audio Codecs: G.722/G.711-Ulaw/G.711-Alaw/
- G.726/G.729/GSM/SPEEX
- Video Codecs: H.261/H.263/H.263+/H.264
- Protocols: SIP (RFC3261)/IAX2
- DTMF: RFC2833/SIP INFO/In-Band
Network Features
- DDNS Client
- DHCP Server
- IPv4/IPv6/IEEE802.1Q
- IP Assignment (PPPoE/DHCP/Static)
- SNMP v1/v2
- TR069
- Static Route Table
- Trouble Shooting (Ping/Traceroute)
- VPN Client (N2N/L2TP/PPTP/OpenVPN/IPSec)
- VPN Server (PPTP/L2TP/OpenVPN/IPSec)
Security Features
- Refuse SIP Register DoS
- Refuse Abort Invite DoS
- Refuse SSH Login DoS
Logs
- PBX Log
- Web Access Log
- PBX Debug Log
Technical Specification
Hardware Interfaces
- 1 Reset Button
- 1 Power Interface
- 2 Ethernet Interfaces(WAN/LAN)
- 2 Analog Ports (FXO/FXS)
- 1 USB 2.0 Interface for Storage
- 1 Console Port
Hardware Specifications
- Processor: DualCore A7(1GHz)
- SDRAM: DDR3 512MB
- Storage: 8GB SD Card(Industry Standard)
- Power Supply: Input AC 100~240V, 50/60Hz;
- Output DC 12V/1A
Environment
- Working Temperature: 0 ~ 40°C
- Storage Temperature: -20 ~ 55°C
- Humidity: 5 ~ 95% Non-condensing
